9.0k 9000 watt Mono Block Amplifier
Couldn't load pickup availability
About the Product

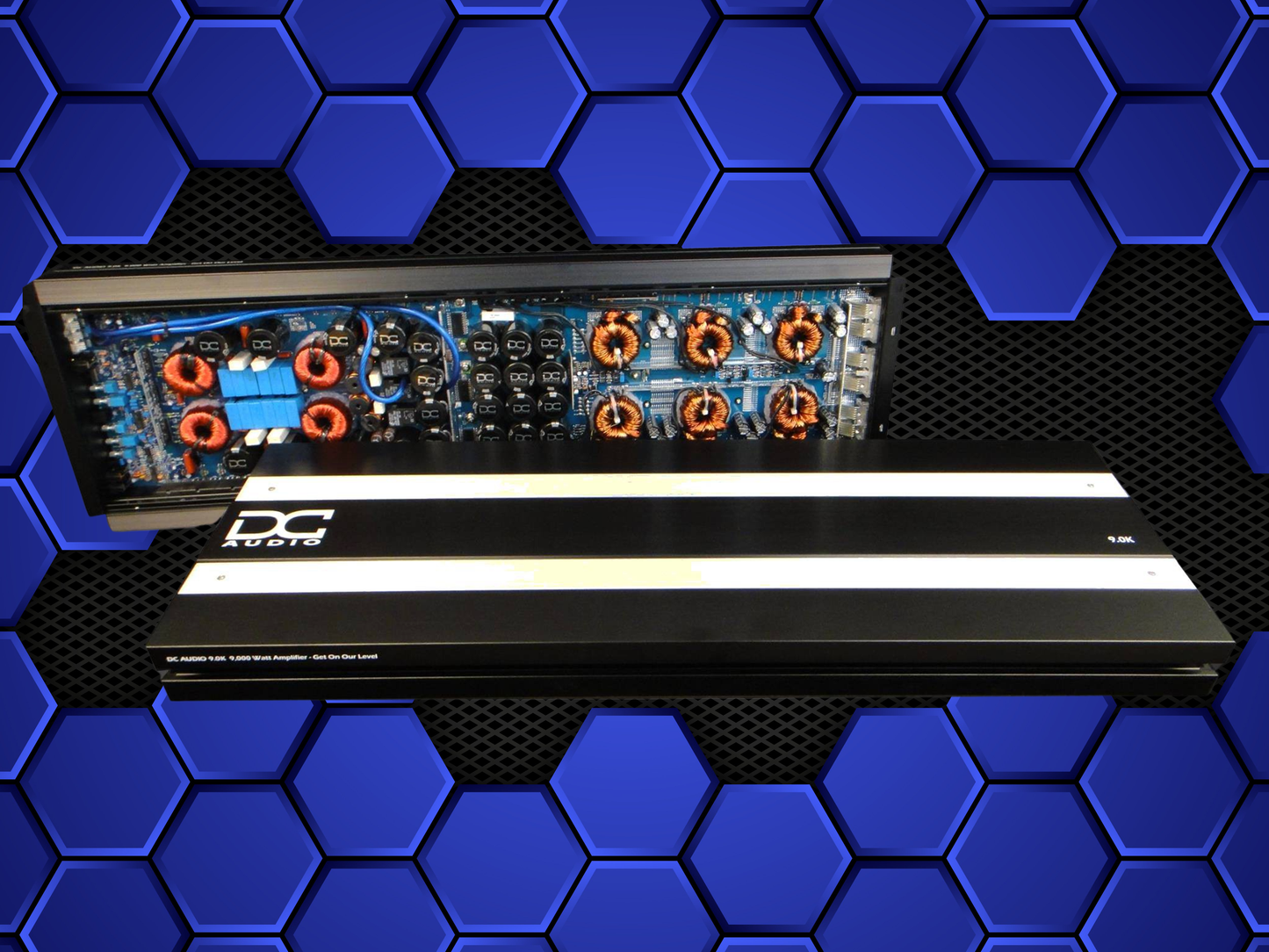

DC Audio 9.0k Amplifier
The 9.0k competition series amplifier is rated as a 9000 watt mono block. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when linked for up to 22,000 watts from a pair. It comes with a bass knob.
Output Power (RMS):
- 2,400x1 @ 4 ohms 14.4 volts
- 4,800x1 @ 2 ohms 14.4 volts
- 9,000x1 @ 1 ohms 14.4 volts
- 18,000x1 @ 2 ohm 14.4 volts LINKED
- 9,800x1 @ 1 ohm 16.0 volts
- 19,600x1 @ 2 ohm 16.0 volts LINKED
- 11,000x1 @ 1 ohm 18.0 volts
- 22,000x1 @ 2 ohm 18.0 volts LINKED
Key Features:
- 1 ohm stable
- Variable low pass filter
- Variable subsonic filter
- Variable bass boost
- RCA Pass Thru
- Linkable
- Wired remote control
- 8awg Speaker Terminals
- Triple 1/0awg Power and Ground Inputs
Full Specs:
DC Amp Model: | 9.0k |
---|---|
Input Sensitivity | 6V~0.2V |
Frequency Response | 20Hz~250Hz |
24dB / Octave Crossover | YES |
Low Pass | 35Hz ~ 250Hz |
Subsonic Filter | 10Hz-50hz |
Bass Boost @45hz | 0 ~ 9db |
Phase Shift | 0 ~ 180 |
Remote Control | Yes |
Clip Indicator | No |
Signal to Noise Ratio | dB100 |
Damping Factor | 250< |
THD @ 4ohms | Less than 0.1% |
Fuse Rating | External 300 amp x 3 |
LED Status Lights | Power and Protect |
Master/Slave | YES |
Heatsink Length | 34.64"/880mm |
Heatsink Width | 11.5"/292mm |
Heatsink Height | 2.6"/66mm |

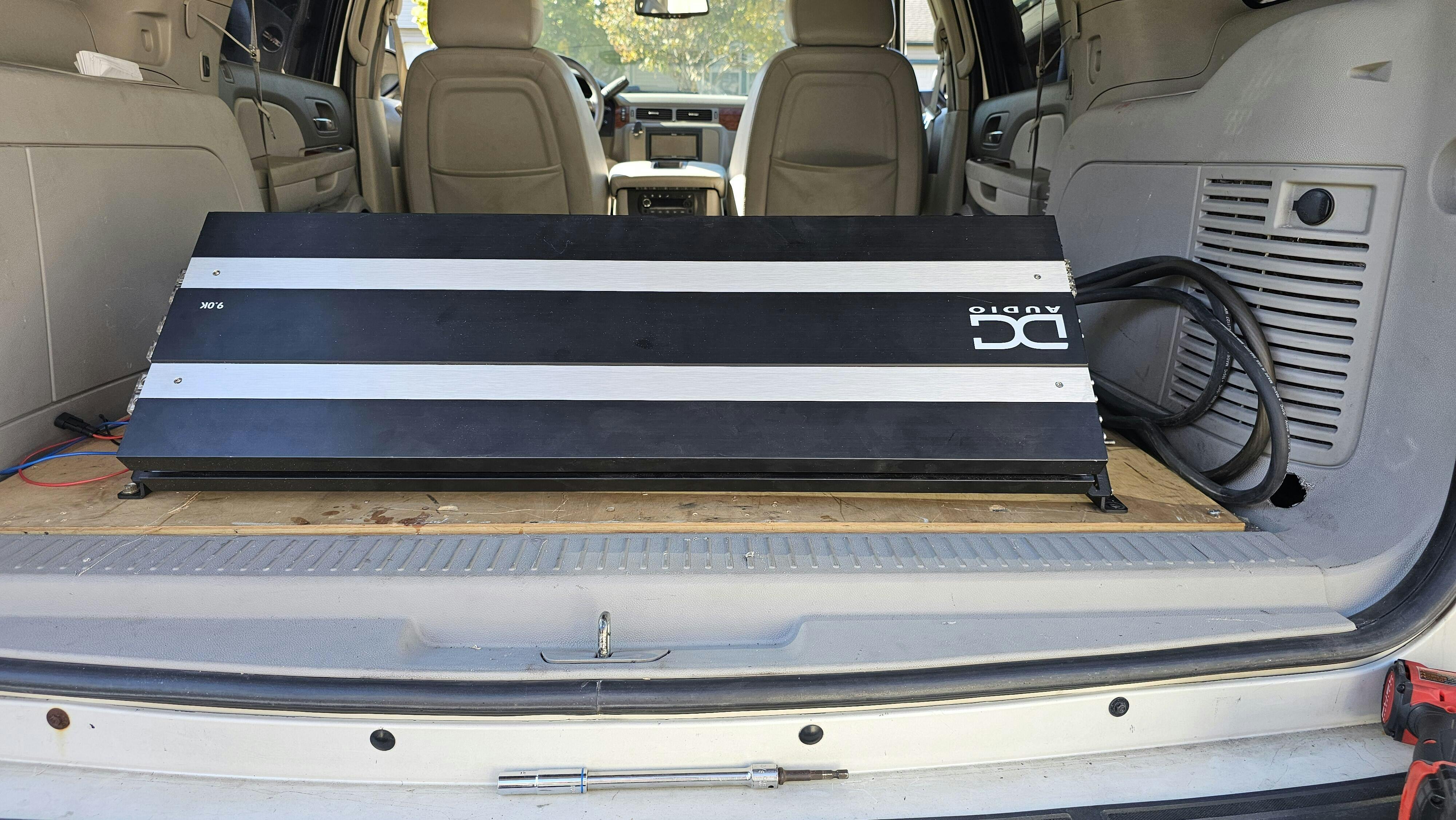

Im running 4 of these at 16v charging 18v and they are amazing. They will put out much more power than advertised. Cant go wrong with these amps.
Great amp, has lots of power and is very reliable. Almost 3 years beating one in the dirt and not a single issue
I have ran Dc Audio for 10+ years now and I have some of the first 9k's Dc made. My Tahoe with 6 - 9k's has been all over the USA competing and handing out demos for a DECADE (most people have heard of it) with the SAME DC Audio 9k's powering my system... AND WINNING. If you want REAL power that is ultra reliable...then you need to pick up a few of these amps. I have ran my system for YEARS, probly more than ANYBODY actually competing with the same equipment, wired way down and "highly" abused because I know it will take all of it... and more, National titles, world records, demos from beyond... lol and DRIVEN everywhere with DC laying the smack down. These amps do rated power, run on 12v, 16v, 18v so they WILL work in whatever you put them in and look damn Good doin' it too. If you want THE ABSOLUTE BEST, then you better get yourself some DC Audio :)
Love these amps! Absolutely tanks. I’m running 3 at .67 and they are work horses, they don’t get hot even after an hour of straight demoing. Also I have did some testing to see if they would play at .25 it was risky but I like taking risks😂. Luckily since they are so well-built the amps would just go into protect and come right back out. Couldn’t ask for anything more.
