DC Audio PS3 Subwoofer

Model: PS3

Sizes Available: 10,12,15 and 18 Inch Models

Power Handling: 1250 Watts RMS 2500 Watts Peak

Voice Coil Options: Dual 1 & Dual 2 ohm versions

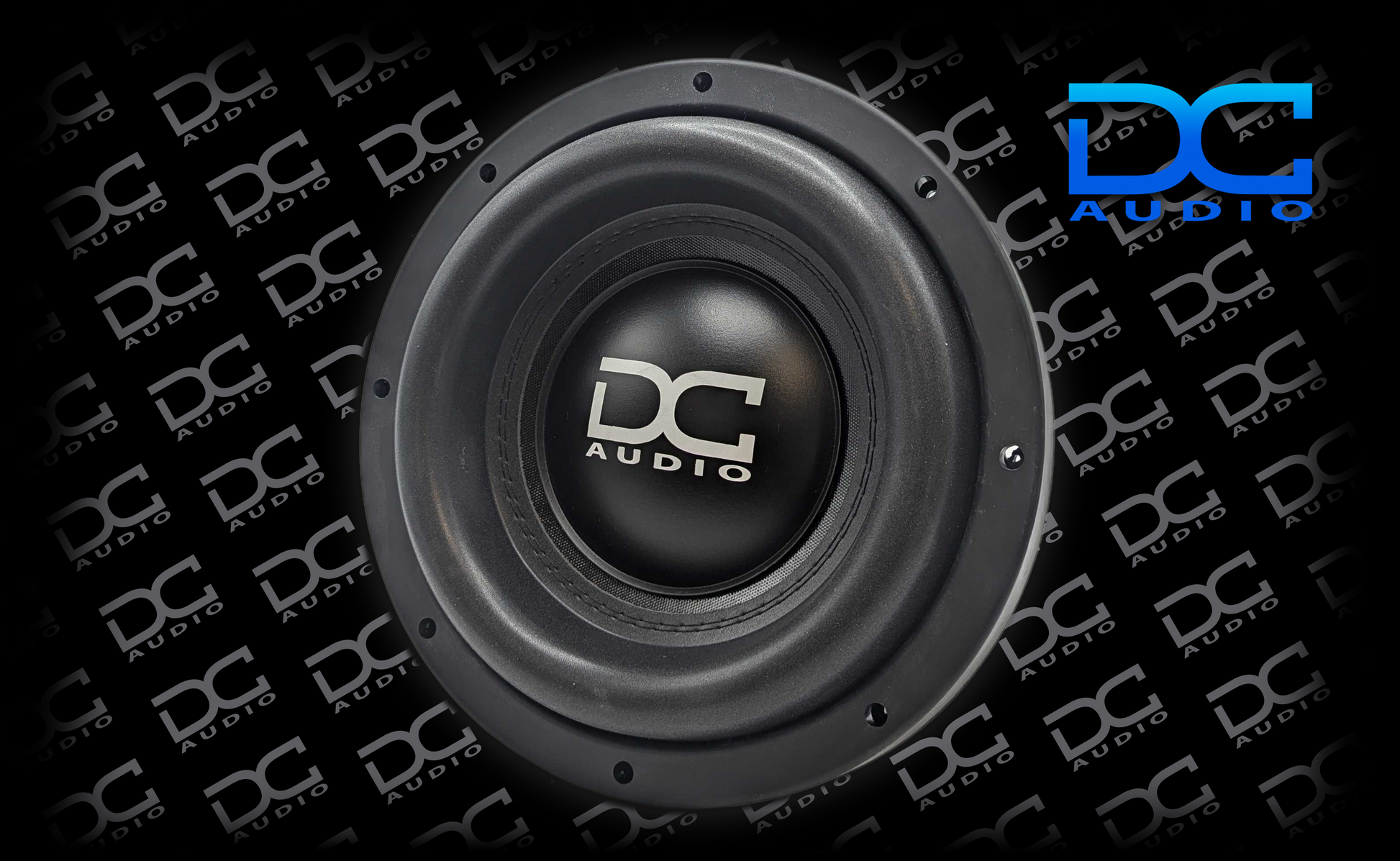

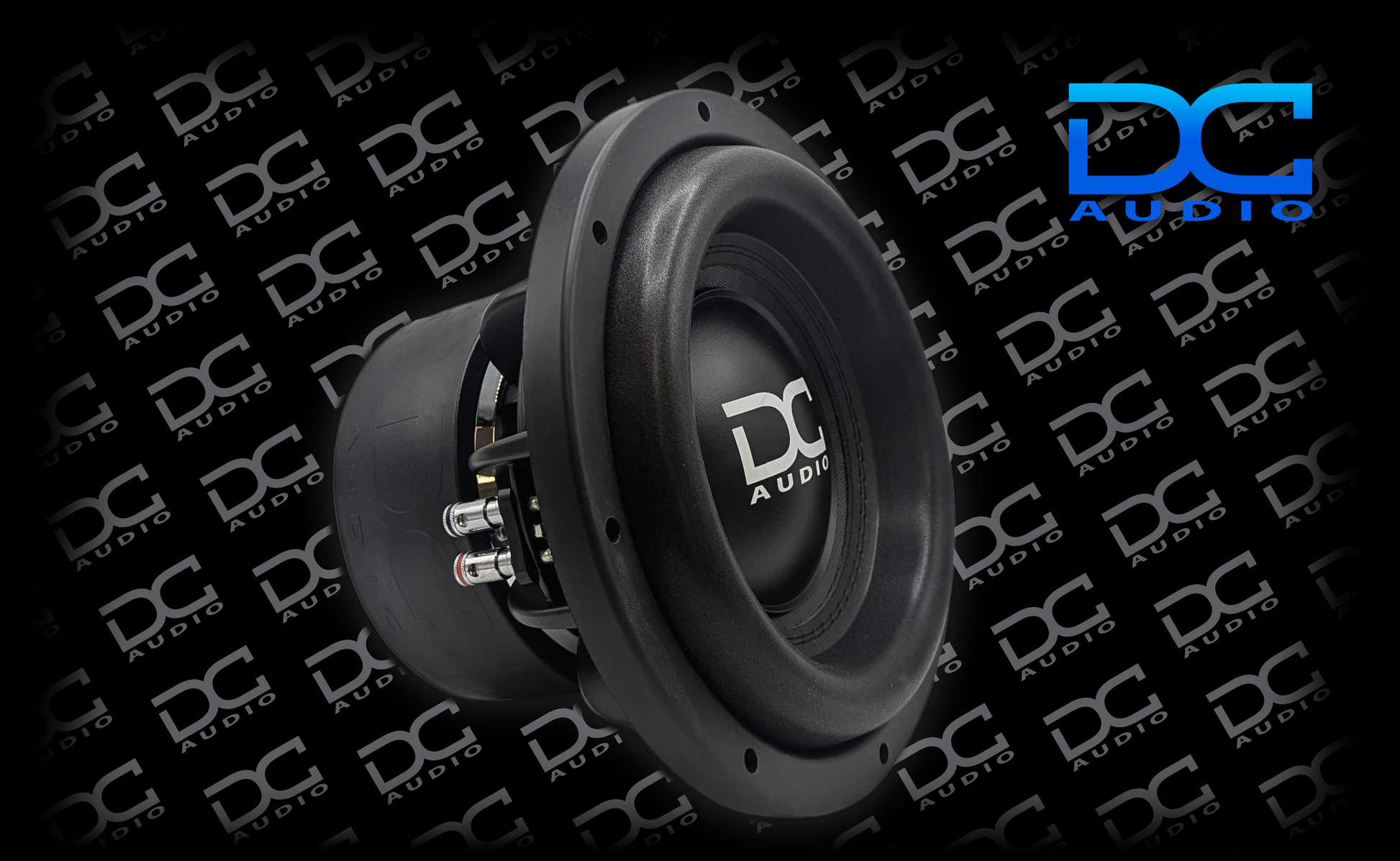

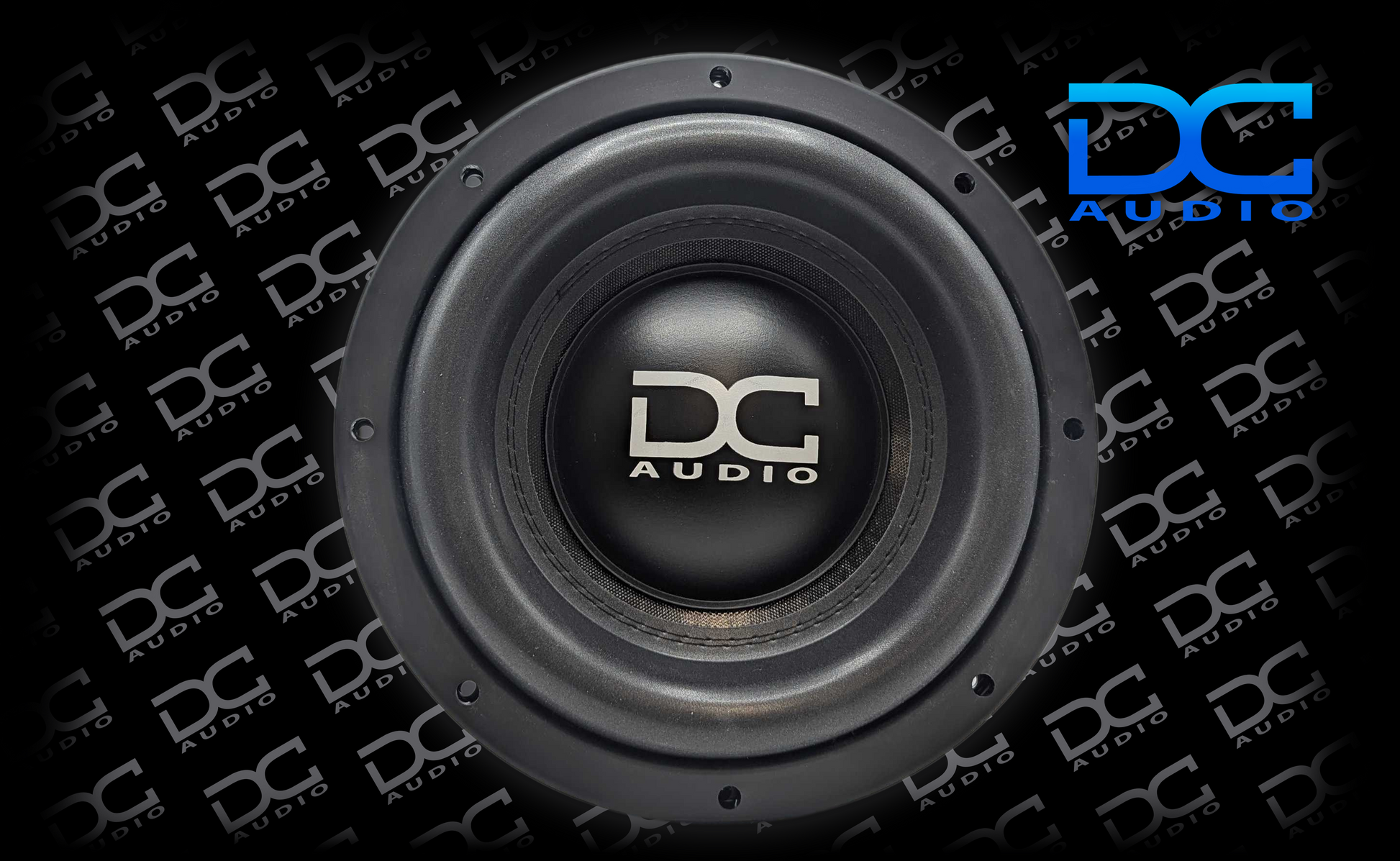

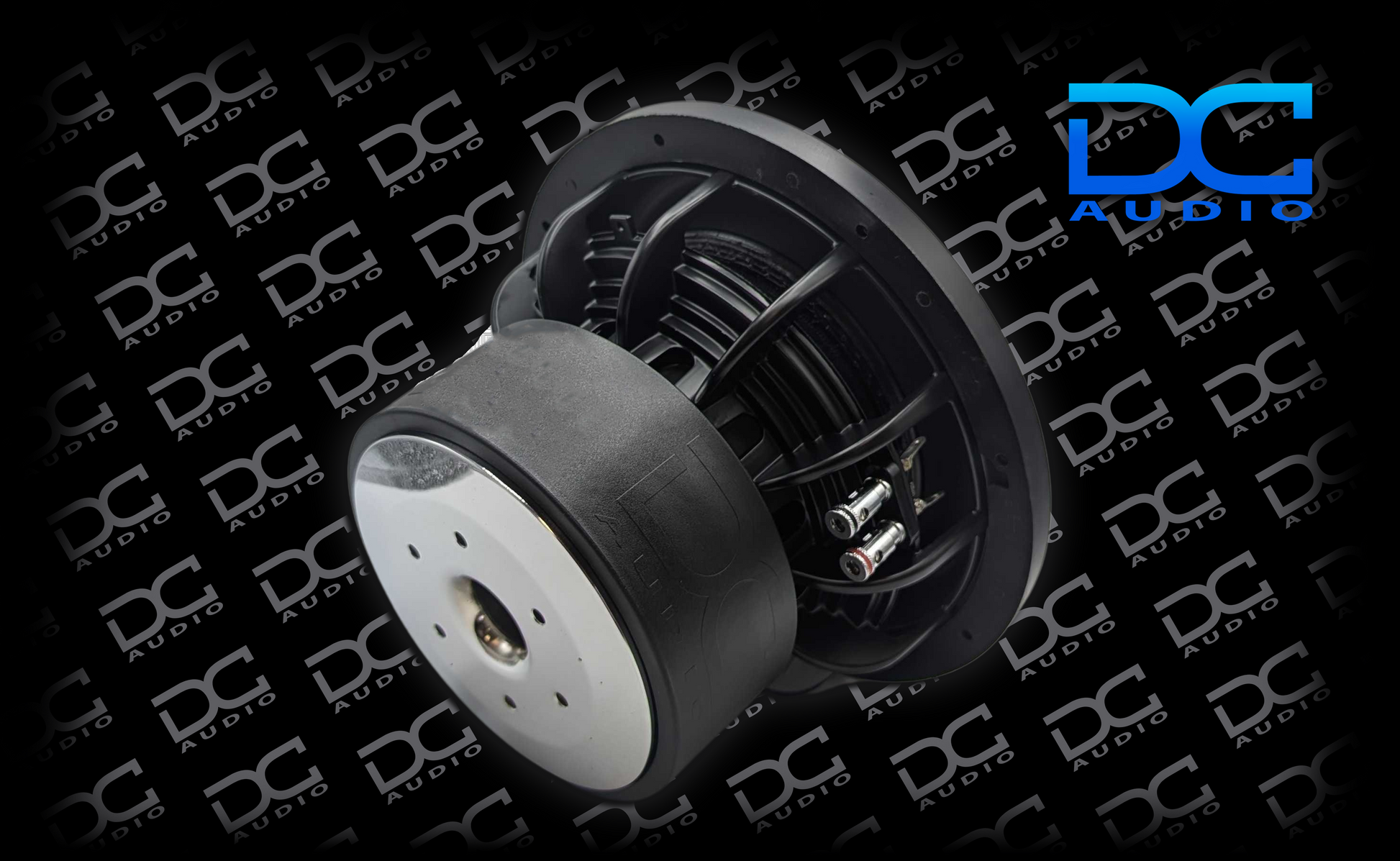

**Photos are 10" Version**

Subwoofer Description

The PS3 sub is the result of countless hours of R&D. We built, and rebuilt over and over to bring you a subwoofer that is designed to be in a sealed or ported box BUT work in a open air environment . These guys are at home pounding out the bass on a Bagger Motorcycles , Slingshots or Side by Sides.

The PS3 sub has a 2.5mm aluminum shorting ring as well as a very specific set of soft parts that makes this driver come to life in open air. It has rear gap venting, a pole vent, triple stacked FEA optimized motor with a custom tooled magnet boot.

 Key Features

• Extremely rigid non-pressed paper cone assembly

• Multilayered polymer foam surround

• Polypropylene dust cover with DC logo

• Triple 8” OD semi cup progressive roll spider

• Extra heavy duty interweaved tinsel lead wire sewn to spider

• Cast aluminum black frame / no invert mount

• FEA analyzed and optimized motor assembly – Fully CNC machined

• Rubber mounting gasket

• Chrome spring loaded push terminals

• 3” Hi-temp custom voice coil wound on black anodized voice coil former

• Rubber magnet cover

• 2.5mm Aluminum shorting ring


T/S Parameters
