About the Product
DC Audio m4 Level 1 Subwoofer
Sizes Available: 10 & 12 Inch Models
Ohms Available: D2 & D4 Models
Power Handling: 300 Watts RMS 600 Watts Peak
The Long-awaited Level 1 Subwoofer is finally here!
It starts out with a double stacked FEA optimized motor. A chrome top plate and T yoke. 2.0" voice coil, Glossy Black stamped Steel Frame, push terminals.
This subwoofer works great in sealed or ported enclosures.
Key Features:
- Stitched surround and paper cone assembly
- Rubber Motor boot with DC Logo
- Polypropylene dust cover with DC logo
- Heavy duty interweaved tinsel lead wire sewn to the spider
- Stamped Steel black frame
- FEA analyzed and optimized motor assembly - Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- Chrome spring loaded push terminals
- 2.0” voice coil
Click HERE to get a Subwoofer Box
T/S Parameters
| M3 Level 1 Subwoofers | 10" | 12" |
|---|---|---|
| Mounting Depth | 6" | 6.5" |
| Mounting Hole Diameter | 9.3" | 11.2" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 2.0" | 2.0" |
| Displacement | .12 ft | .14ft |
| Power Handling rms/peak | 300/600 | 300/600 |
| Ohm Options | d2/d4 | d2/d4 |
| Sd | 324 cm | 481 cm |
| Vas | 17.1 L | 47.7 L |
| Cms | 0.12 Mm/n | 0.12 Mm/n |
| Mms | 146.8 g | 168 g |
| Fs | 37 Hz | 32.6 Hz |
| Bl | 23.2 N/A | 23.2 N/A |
| Re | 8 Ohm | 8 Ohm |
| Le | 3.88 mH | 2.79 mH |
| Qms |
3.15 |
2.52 |
| Qes |
0.52 |
0.51 |
| Qts | 0.45 | 0.43 |
| Xmax | 19mm | 19mm |
| Ref SPL @1 watt | 84.2 db | 86.9 db |
| Suggest Sealed Box | .5 ft | .75 ft |
| Suggested Ported Box | 1.0 ft | 1.25 ft |
I received a Level 1 10” d2 from a customer who didn’t need it anymore. I decided to put it in my second car; the only amp I had laying around was a 1,200 watt rms monoblock. I built a 2.0 cubic foot enclosure for it (2x bigger than recommended), tuned to around 32 hz. As long as the signal is clean and free from clipping, the 600 watt peak is wildly underrated. I regularly throw all 1200 watts at it, during 90° weather with no A/C. I have not even once smelled the coil burning, and I am pushing BEYOND its Xmax. I was fully expecting it to be blown by now, but since it’s not, I’m leaving this review. Phenomenal sub for the price point, dollar for dollar the level 1 rivals Skar and other budget brands.
They arrived a few days later than projected. Other than that all was well.
Certified fresh. Wouldn’t sub them out for any thing.
This level one for entry level sound systems are a great fit. They provide perfect bass in the right enclosure. Thank you Team DC Audio!

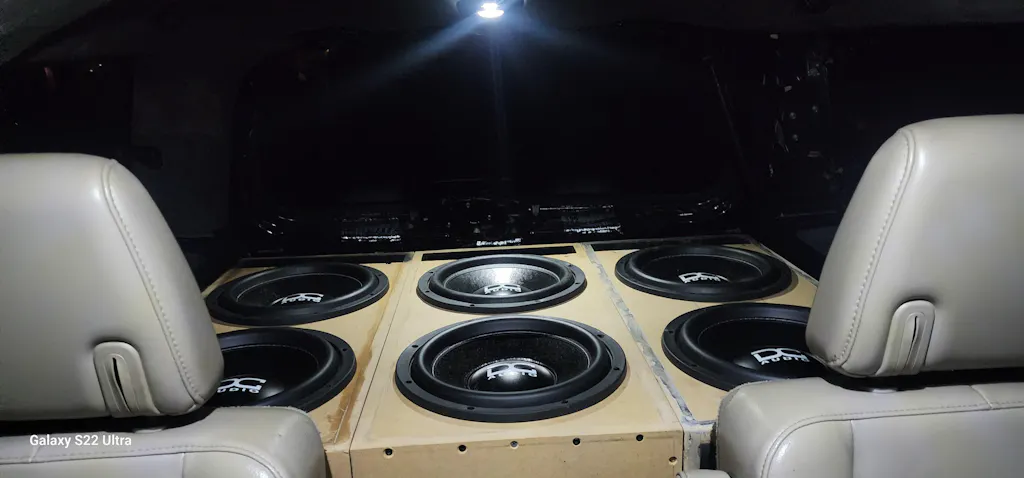

I now have 6 of these in my expedition. Quality of build is great. Sound amazing.
