Level 3 Subwoofers
Couldn't load pickup availability
About the Product
BUILD TIME

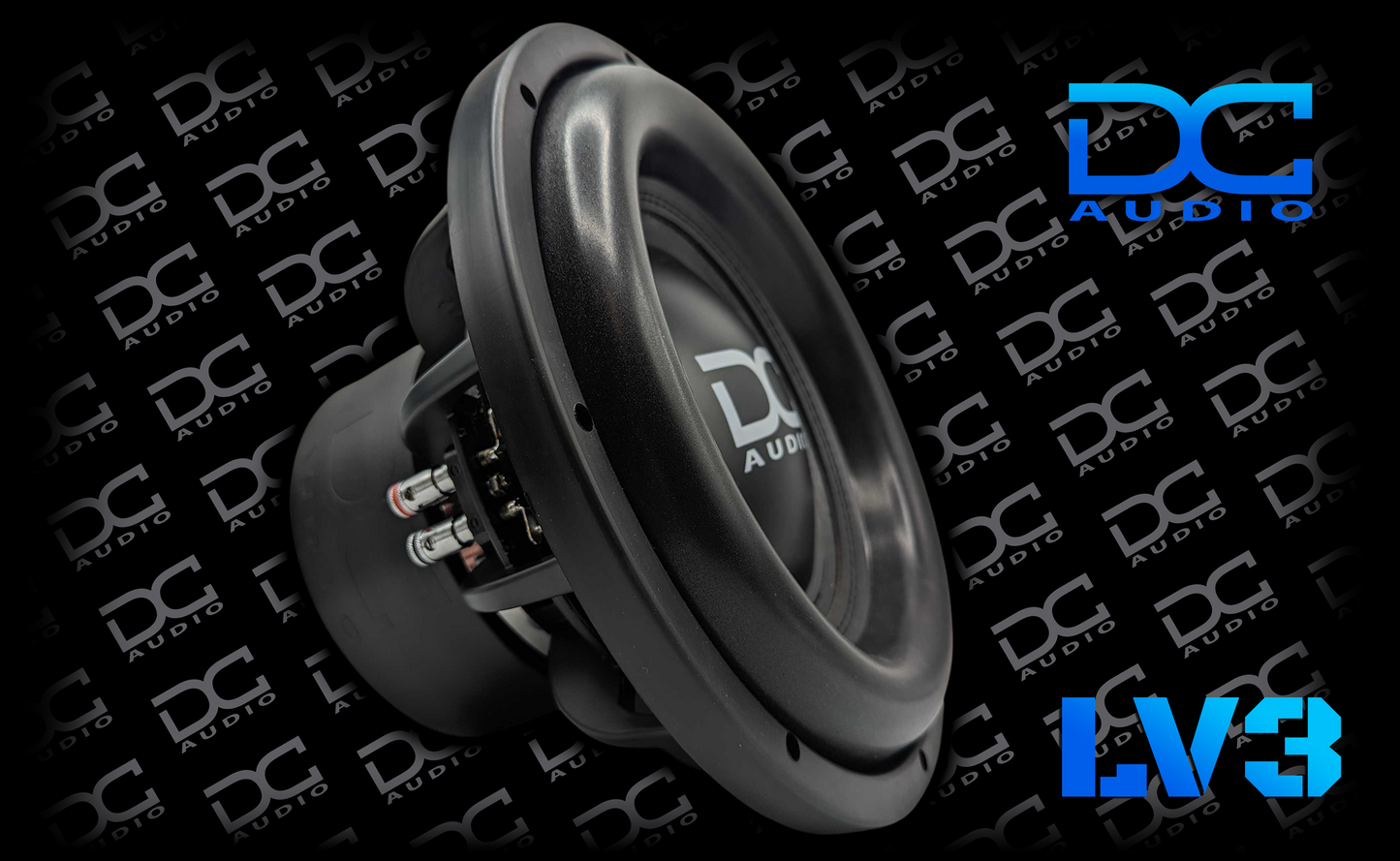

DC Audio Level 3 Subwoofer
Model: m4
Sizes Available: 10,12,15 and 18 Inch Models
Power Handling: 1000 Watts RMS 2000 Watts Peak
Voice Coil Options: Dual 1, Dual 2 and Dual 4 ohm versions
Subwoofer Description
The level 3 sub is the ultimate daily driver sub. It puts out the low lows with lots of output designed for sealed or ported enclosures. It now comes with a 2.5mm Aluminum Shorting ring (demodulation ring) to help reduce inductance in the motor. This can help with power compression.
It also acts as a internal heatsink by pulling heat from the windings into the aluminum ring and the direct to coil venting cycles air across the coil wingings and aluminum shorting ring at the same time cooling them simultaneously.
Newly tooled Motor boots withthe DC Logo and LV3 logo embossed on them

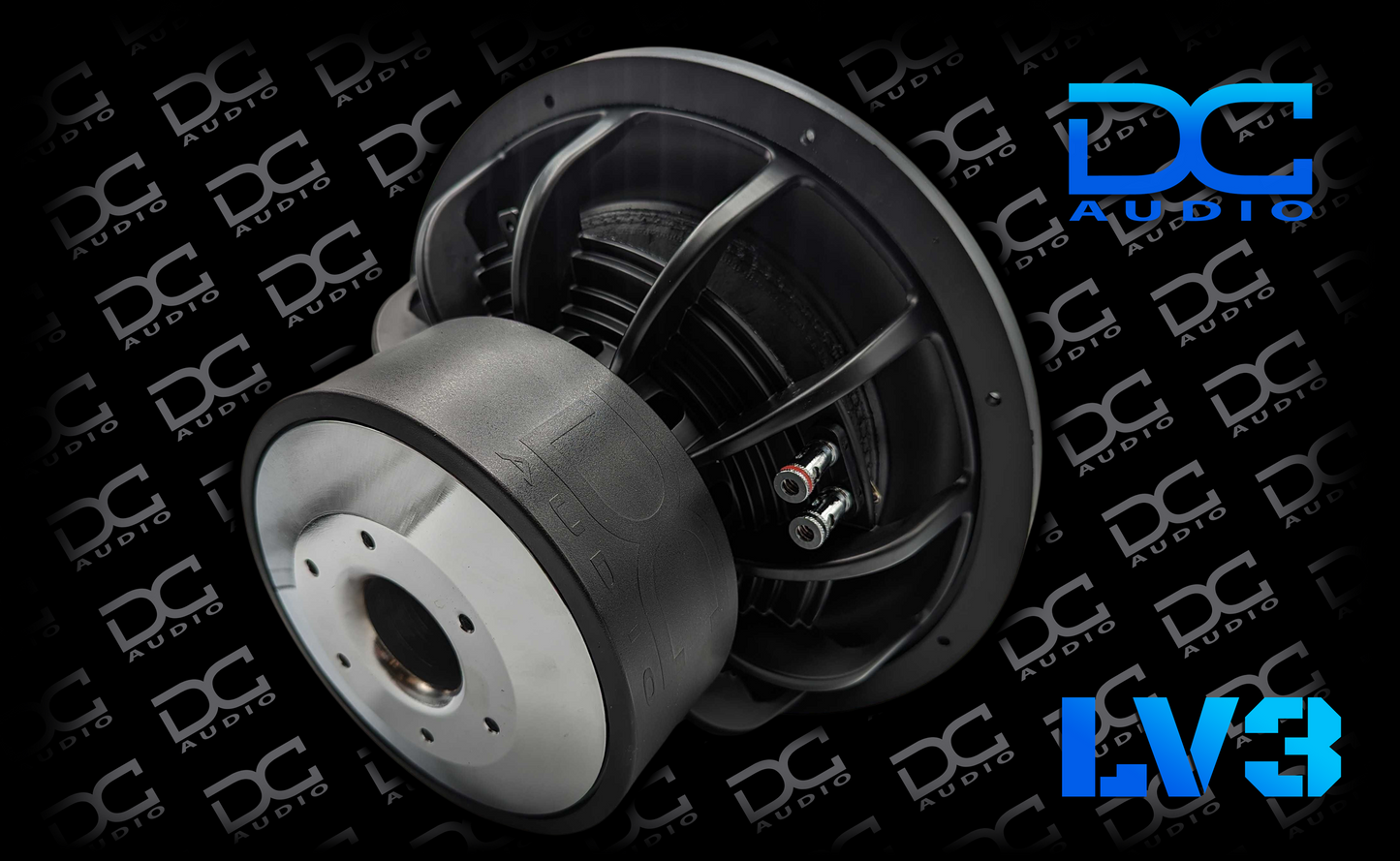

The Level 3 sub is a triple stacked FEA optimized motor wrapped in a DC Embossed magnet boot, chrome top plate and T yoke. The deep gap offers more X-max for a total of 22.5mm.
This sub also comes with dual upgraded progressive spiders, cone, surround, 3" voice coil, cast basket, push terminals, and upgraded sewn down lead wire. We give the Level 3 a power rating of 1000w RMS/2000w peak.
Key Features

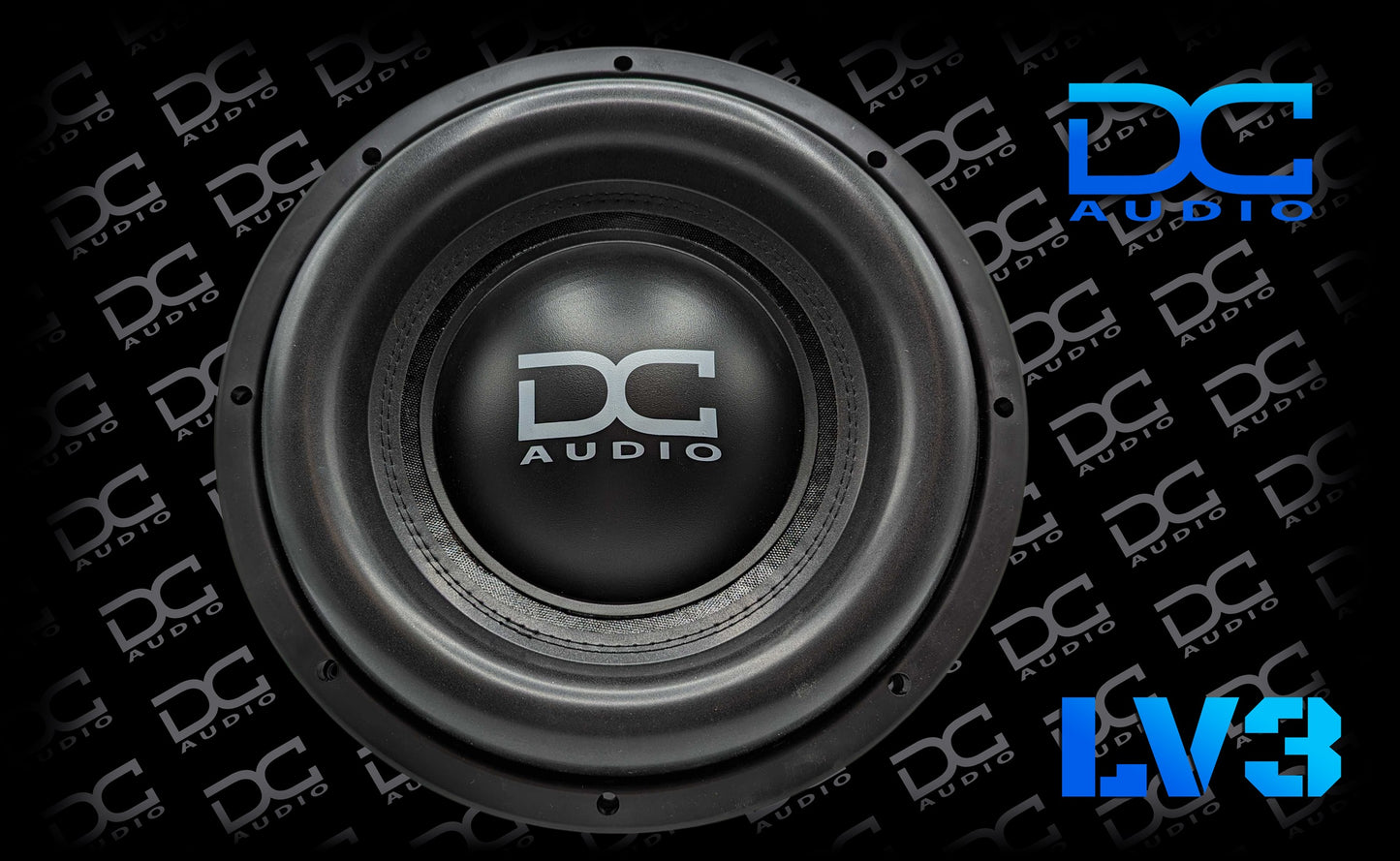

• Extremely rigid non-pressed paper cone assembly
• Multilayered polymer foam surround
• Polypropylene dust cover with DC logo
• Dual 8” OD semi cup progressive roll spider
• Extra heavy duty interweaved tinsel lead wire sewn to spider
• Cast aluminum black frame / no invert mount

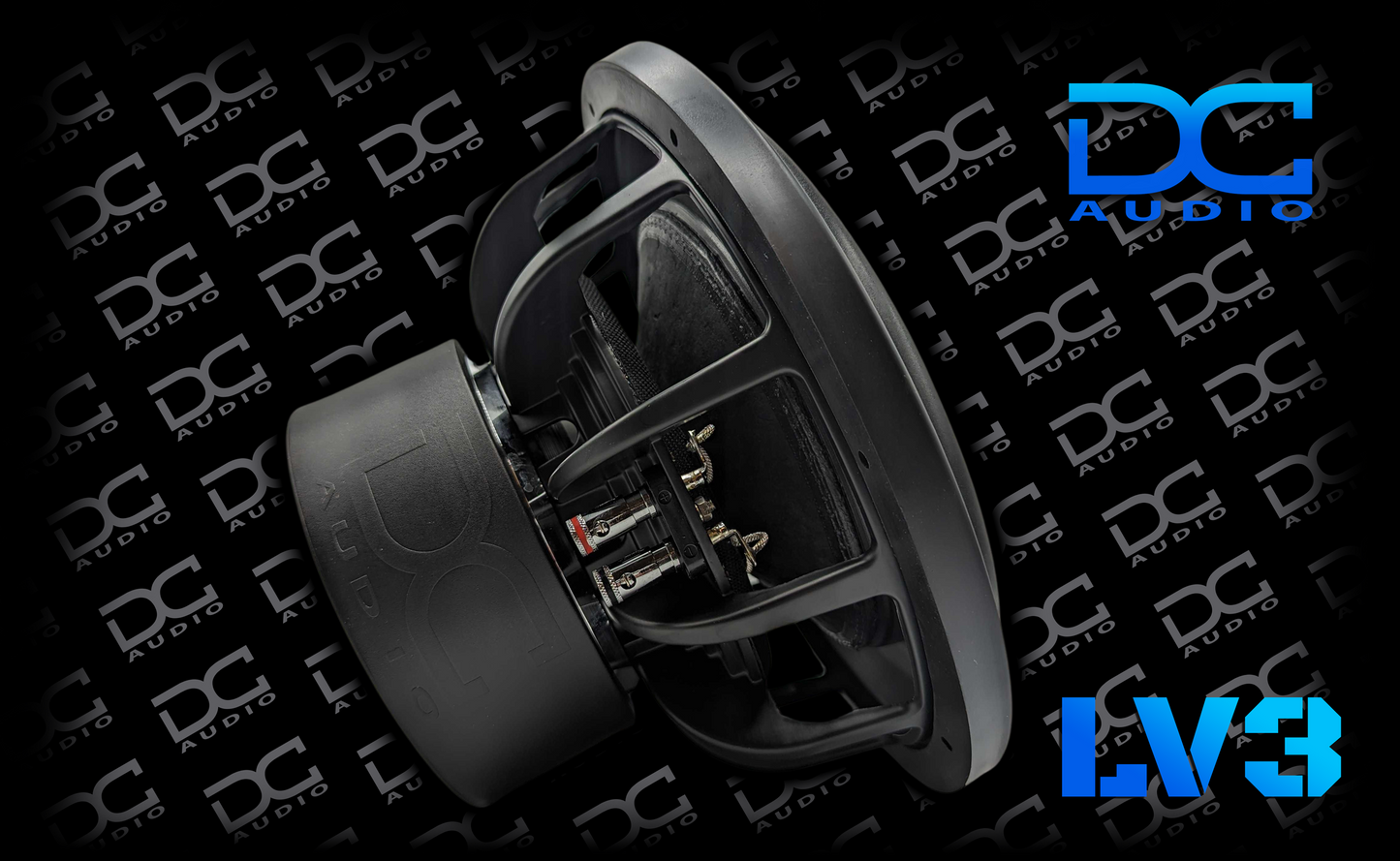

• FEA analyzed and optimized motor assembly – Fully CNC machined
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 3” Hi-temp Aluminum voice coil wound on black anodized voice coil former
• Rubber magnet cover with DC and LV3 Embossed Logos
2.5mm Aluminum Shorting ring
T/S Parameters
| M3 Level 3 Subwoofers | 10" | 12" | 15" | 18" |
|---|---|---|---|---|
| Mounting Depth | 6.25" | 6.75" | 8" | 9.5" |
| Mounting Hole Diameter | 9.35" | 11" | 14" | 16.75" |
| Outside Driver Diameter | 11" | 12.5" | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" | 3.0" | 3.0" |
| Displacement | .15 ft | .16 ft | .18 ft | .22ft |
| Power Handling rms/peak | 1000/2000 | 1000/2000 | 1000/2000 | 1000/2000 |
| Ohm Options | d1/d2/d4 | d1/d2/d4 | d1/d2/d4 | d1/d2/d4 |
| Sd | 324 cm | 481 cm | 823 cm | 1217 cm |
| Vas | 00.00 L | 00.00 L | 00.00 L | 000.0 L |
| Cms | 0.00 Mm/n | 0.00 Mm/n | 0.00 Mm/n | 0.00 Mm/n |
| Mms | 000 g | 000 g | 000 g | 000 g |
| Fs | 00.0Hz | 00.0 Hz | 00.0 Hz | 00.0 Hz |
| Bl | 00.0 N/A | 00.0 N/A | 00.0 N/A | 00.0 N/A |
| Re | 0.0 Ohm | 0.0 Ohm | 0.0 Ohm | 0.00 Ohm |
| Le | 0.0 mH | 0.0 mH | 0.0 mH | 0.0 mH |
| Qms | 0.00 | 0.00 | 0.00 | 0.00 |
| Qes | 0.000 | 0.000 | 0.000 | 0.000 |
| Qts | 0.000 | 0.000 | 0.000 | 0.000 |
| Xmax | 23mm | 23mm | 23mm | 23mm |
| Ref SPL @1 watt | 00.0 db | 00.0 db | 00.0 db | 00.0 db |
| Suggest Sealed Box | .65 ft | 1.0 ft | 2.0 ft | 3.5 ft |
| Suggested Ported Box | 1.0 ft | 1.25 ft | 3.0 ft | 5.5 ft |
i am so happy and thinking about getting two more 18s I'm very impressed
Blew out my rearview mirror and my sunglasses holder, it will spin cups in circles in the front seat and flex my windshield, ON 800RMS, I'm running it on the Sony xm5-es amp at 2 ohms. Cannot recommend this brand enough, I want to upgrade but I have to throw RMS at this sub first 😁
Great efficient subs that get loud and get low and very clear
Got the 18 in the sonata sitting at about 800rm so under powering it a bit, sounds insane in a 5.5cubic ft box. Couldn't recommend DC enough.
This thing is AWESOME!!! Looks good, sounds great and a real head turner when you ride by!!!
