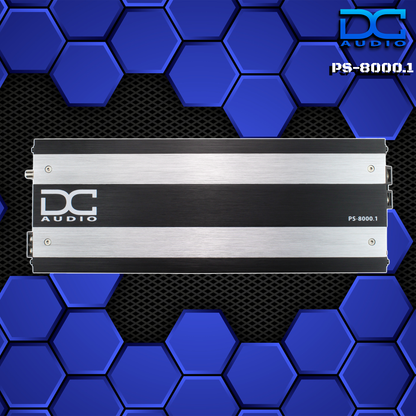

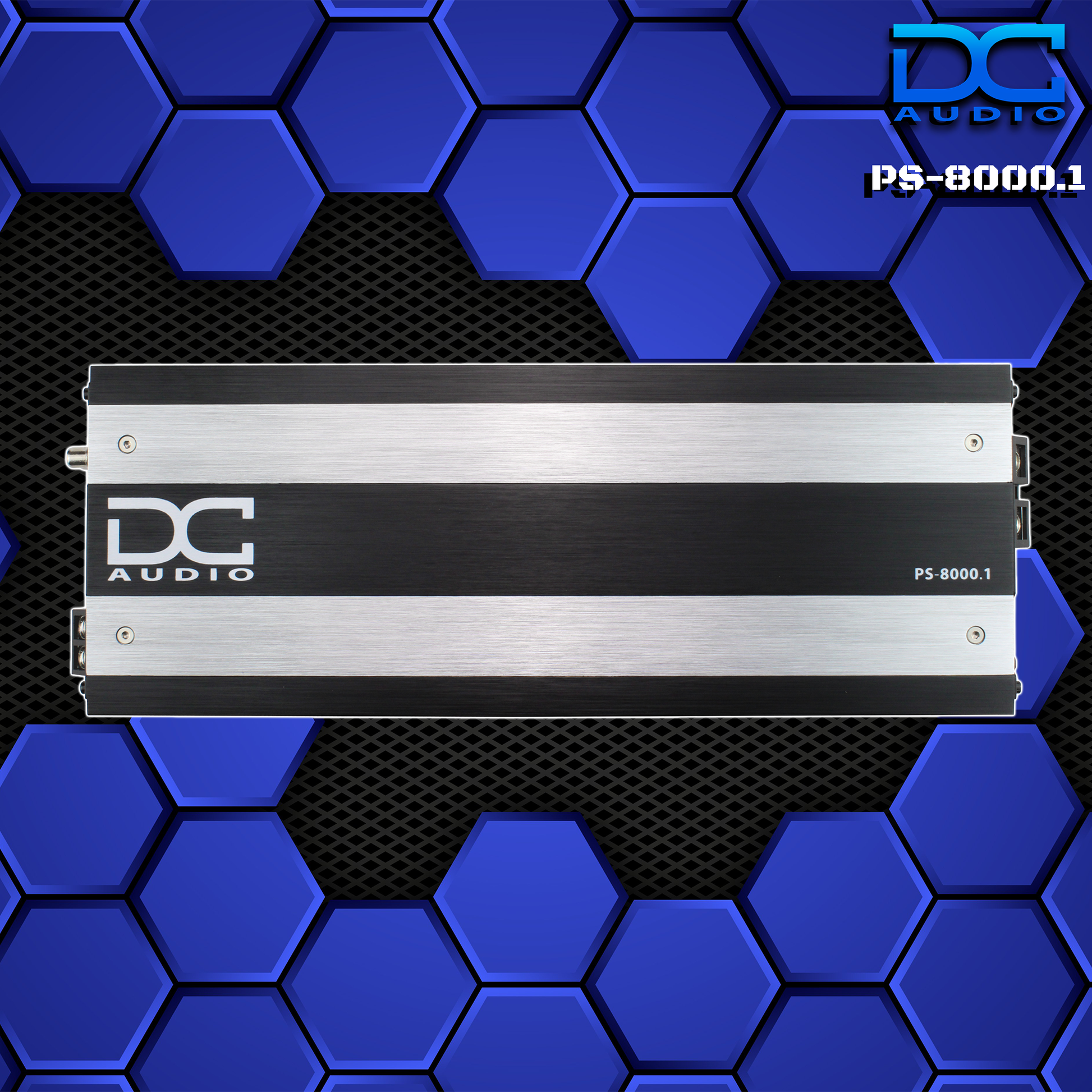

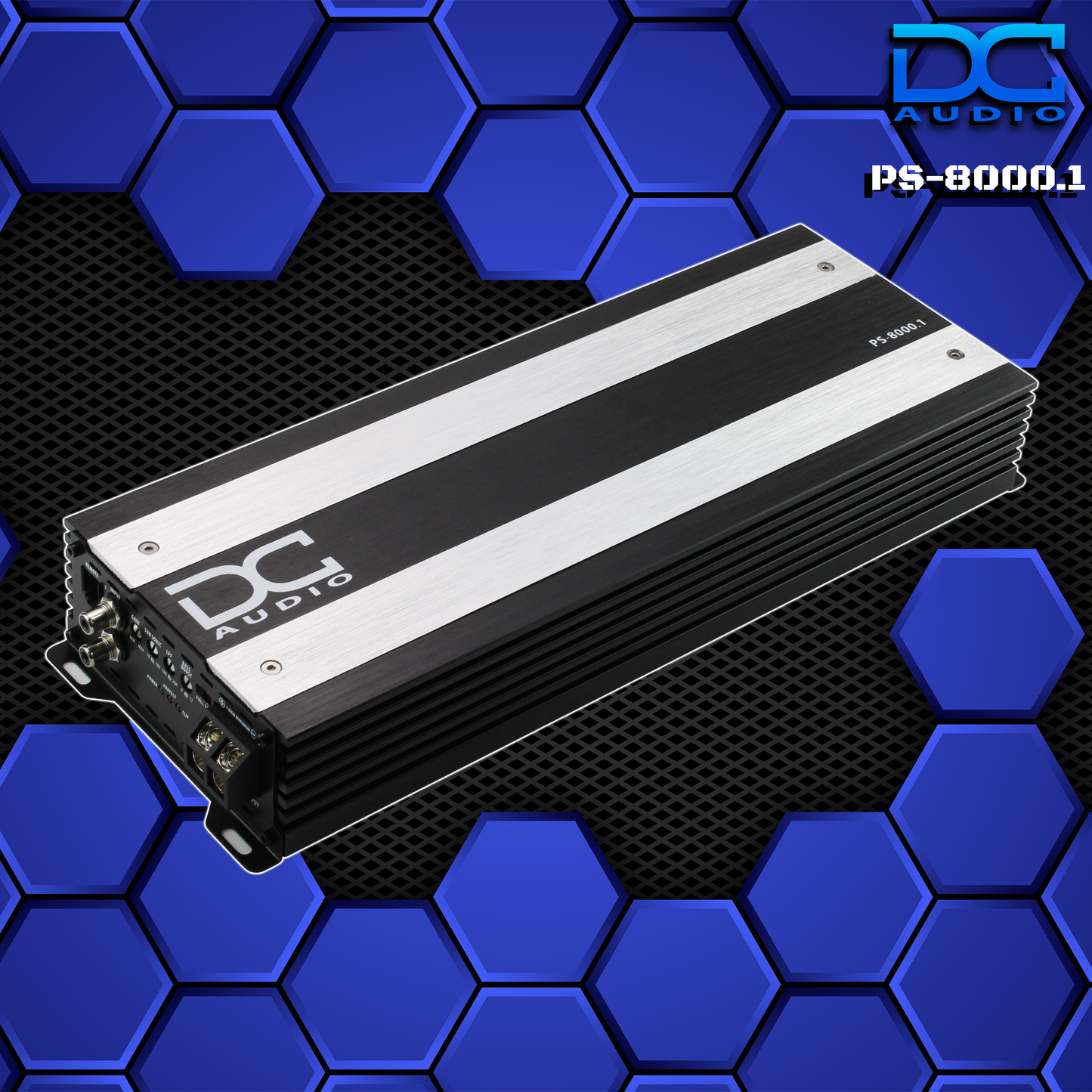

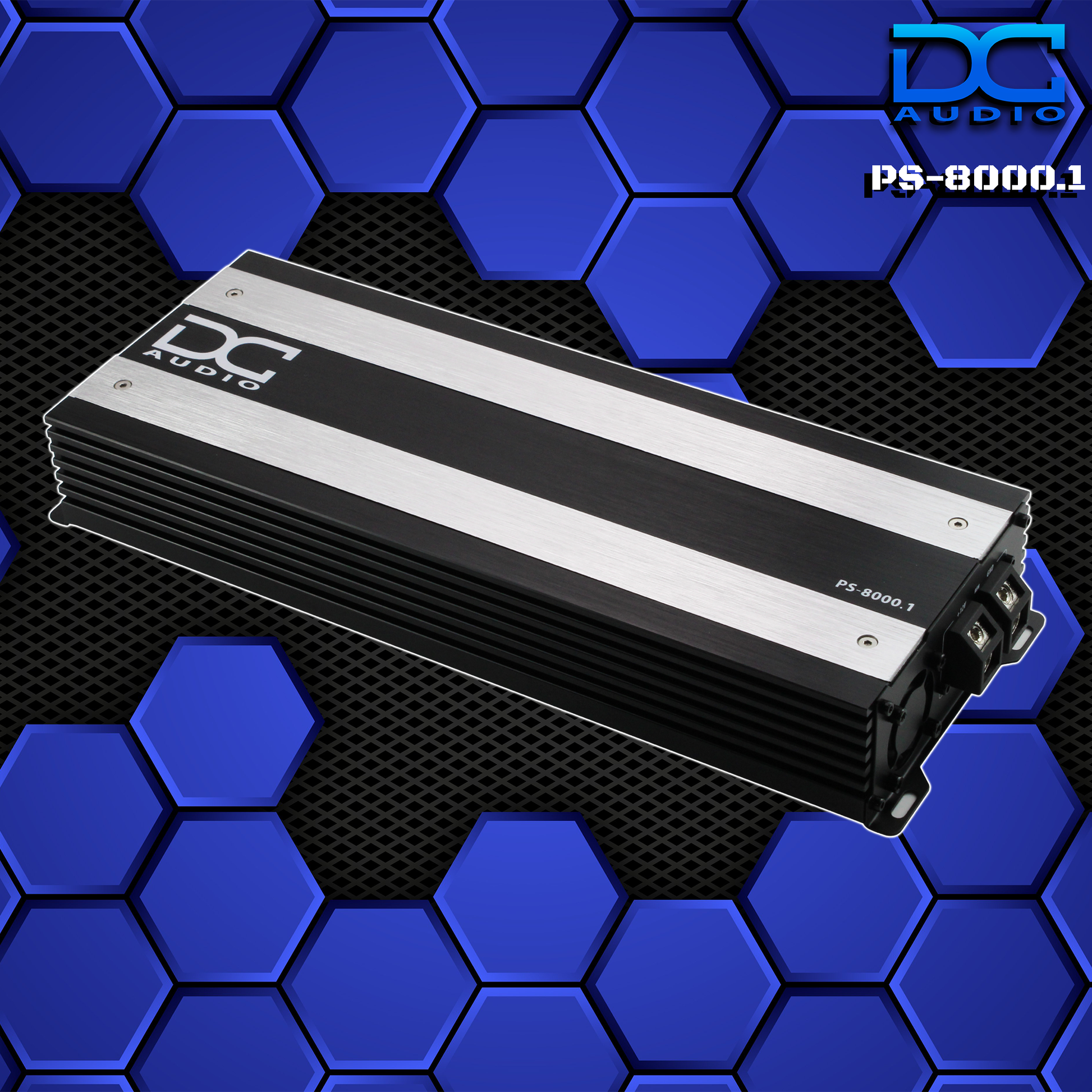

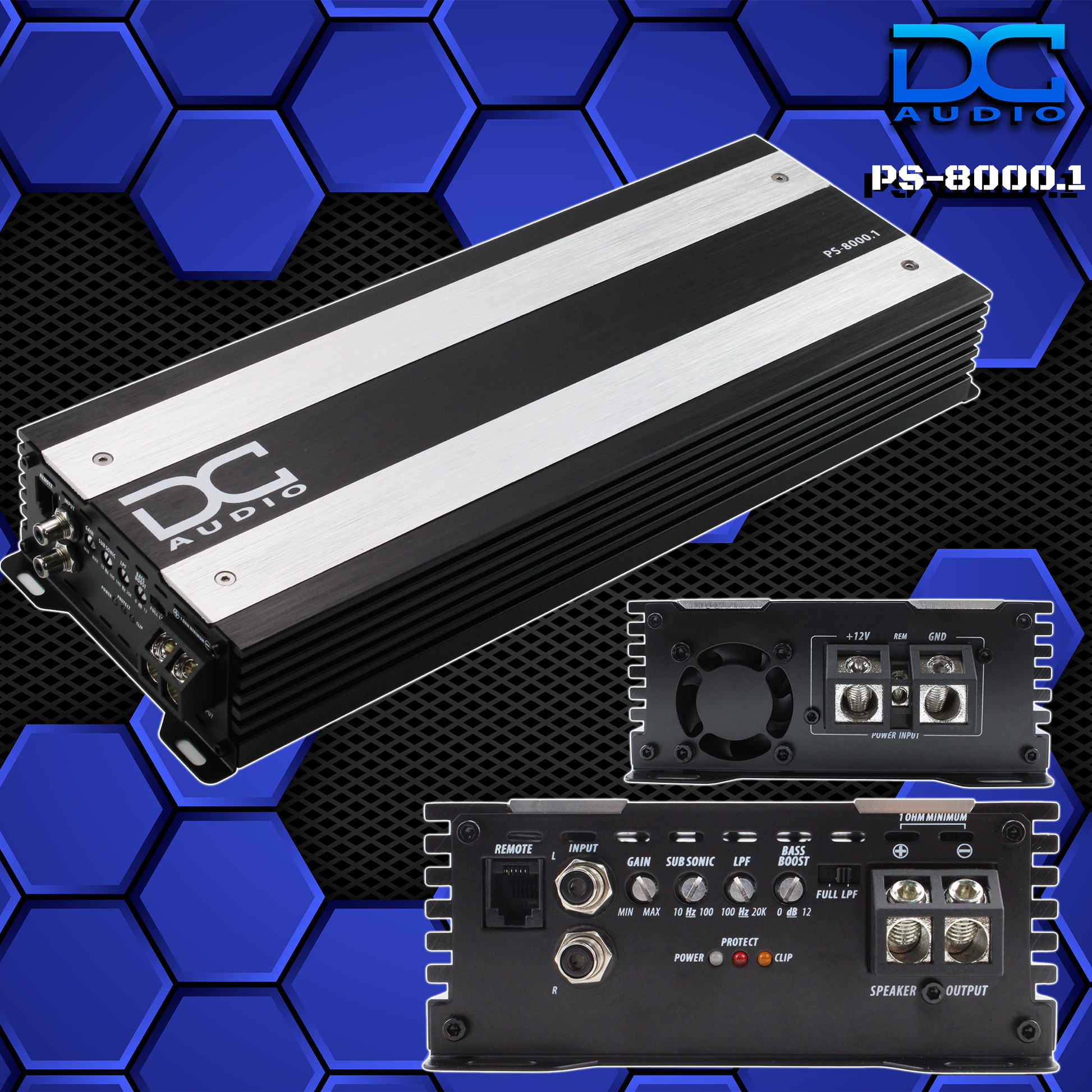

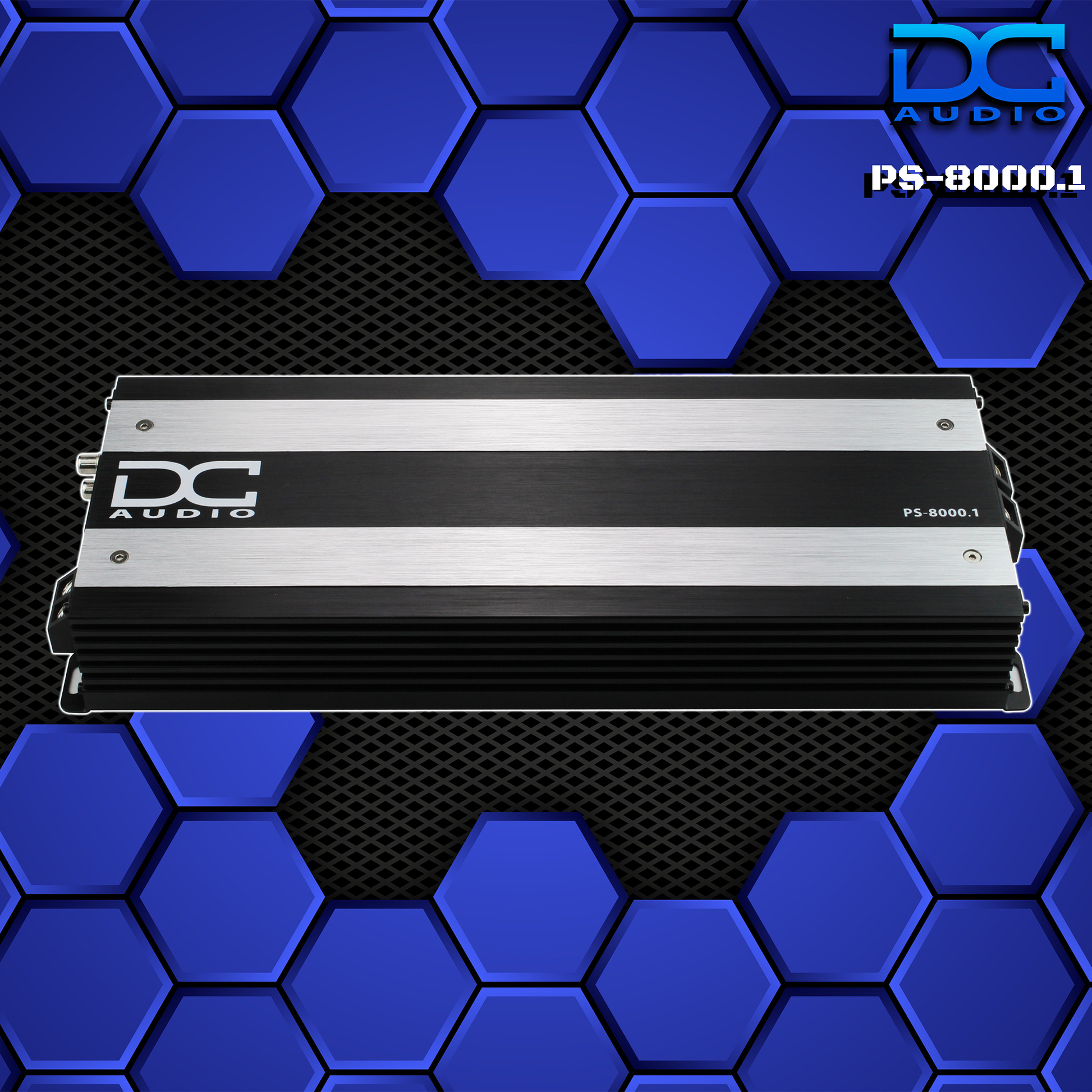

PS8000x1 - Mini Full Range Mono Block Amplifier
Couldn't load pickup availability
About the Product
Amplifier Description
The DC-PS8000x1 is a Full Bridge compact series amplifier capable of making 8,000 watts. It’s High power mono block. It has Standard 1/0 AWG inputs and onboard clipping lights. It also comes with a bass knob. Designed to make more power in less space. Can be used as a subwoofer amplifier or switched into full mode for full range stuntwalls and doors
Output Power (RMS)
4 ohm 2500Wx1 @ 14.4 Volts
2 ohm 4500Wx1 @ 14.4 Volts
1 ohm mono 8050x1 @ 14.4 Volts

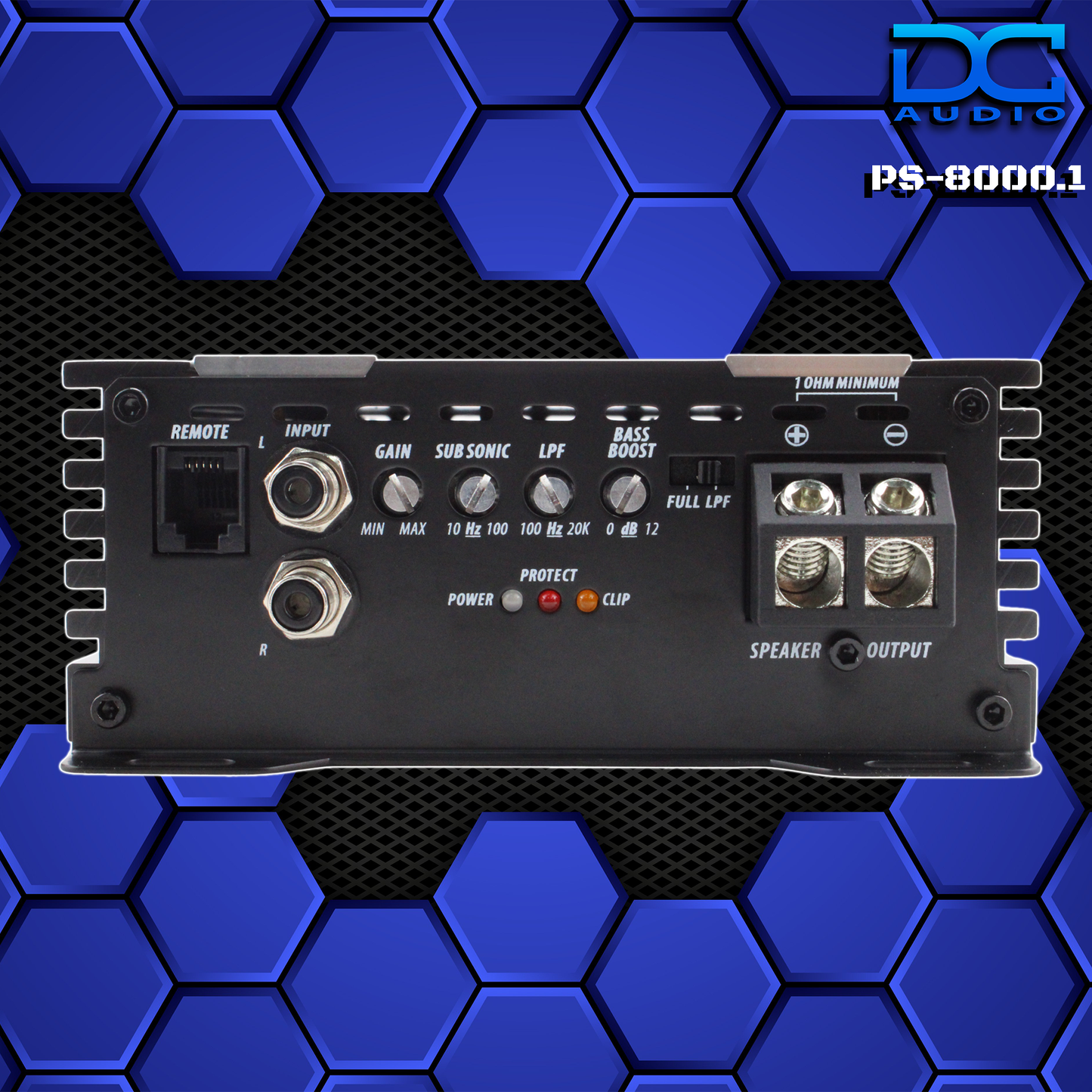

Key Features
1 ohm stable
Operating Voltage 7-17.0v
Variable low pass filter
Variable subsonic filter
Full Range Switch

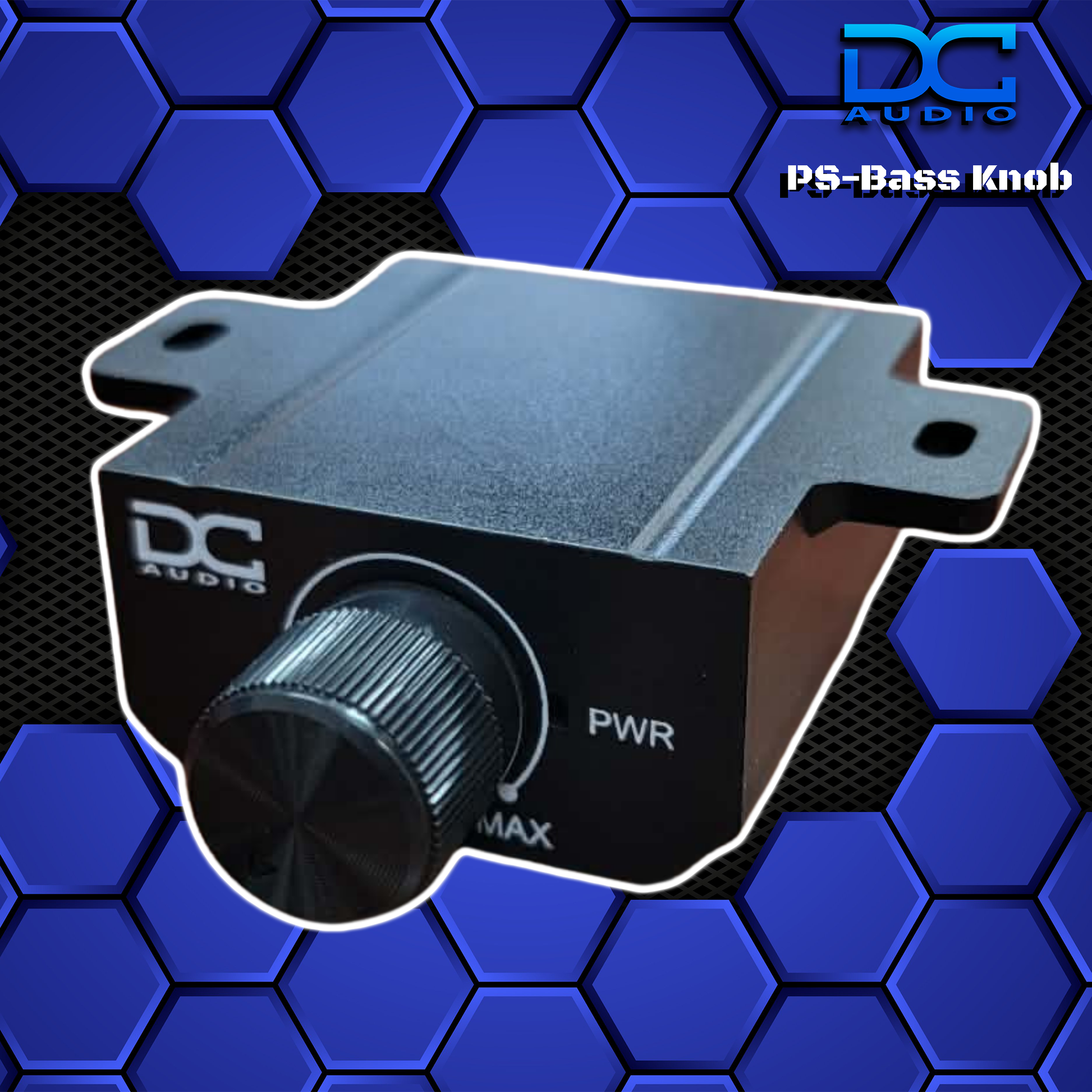

Wired Bass Knob remote control
Bass Boost
Onboard Power / Protect / Clip light
Tiffany Style RCA Jacks
Super Compact Design
AMP SPECS:
| DC Amp Model: | PS 8000.1 |
|---|---|
| Input Sensitivity | 3.8V~0.4V |
| Frequency Response | 10Hz~20kHz |
| 12dB / Octave Crossover | YES |
| Low Pass | 50Hz ~ 15kHz |
| Subsonic Filter | Yes |
| Bass Boost | Yes |
| Phase Shift | No |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB90 |
| Full Range Switch | Yes< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 700 amp |
| LED Status Lights | Power/Protect/Clip |
| Master/Slave | No |
| Total Length | 15.0"/381mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
I bought this unit to replace a Taramps 8K mainly due to the comparative size and brand matching since I am running DC RS10" subs. Once it arrived I noticed the bass know does not have a clip indicator light which i wish it did. Also the bass knob is a bit sensitive, you will need to be precise when performing any gain adjustments. lastly it does not have 1/0 inputs, instead 4ga input. I purchased DC audio brand reducers with the amp from 2/0 to 1/0 which did not fit.
Amp is flawless, i like the future it has of being a full range amplifier. To power mids and highs from. Amp looks great and just like all of the other Dc Audio equipment. Great quality product.
