About the Product
**HAND BUILT IN THE USA**
Build Time
DC Audio XL SPL Subwoofer
Model: M5 SPL
Sizes Available: 10,12,15 and 18 Inch
Power Handling: 2200 Watts RMS 4400 Watts Peak
The XLm5 is the next generation of our most award-winning driver. The XLm5 has an added pole vent, redesigned top plate and T yoke, larger magnets wrapped in a stylish motor boot an 8-layer flat wound voice coil, upgraded cone and surround. We are always looking to make great even better and the XLm5 is again a step in that direction. Anyone looking for a subwoofer that not only sounds great but is a beast in the SPL lanes, look no further, you have found what you have been searching for.
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Triple 8"OD Stiff semi cup progressive roll spiders
- Dual Extra heavy duty interweaved tinsel lead wire
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket

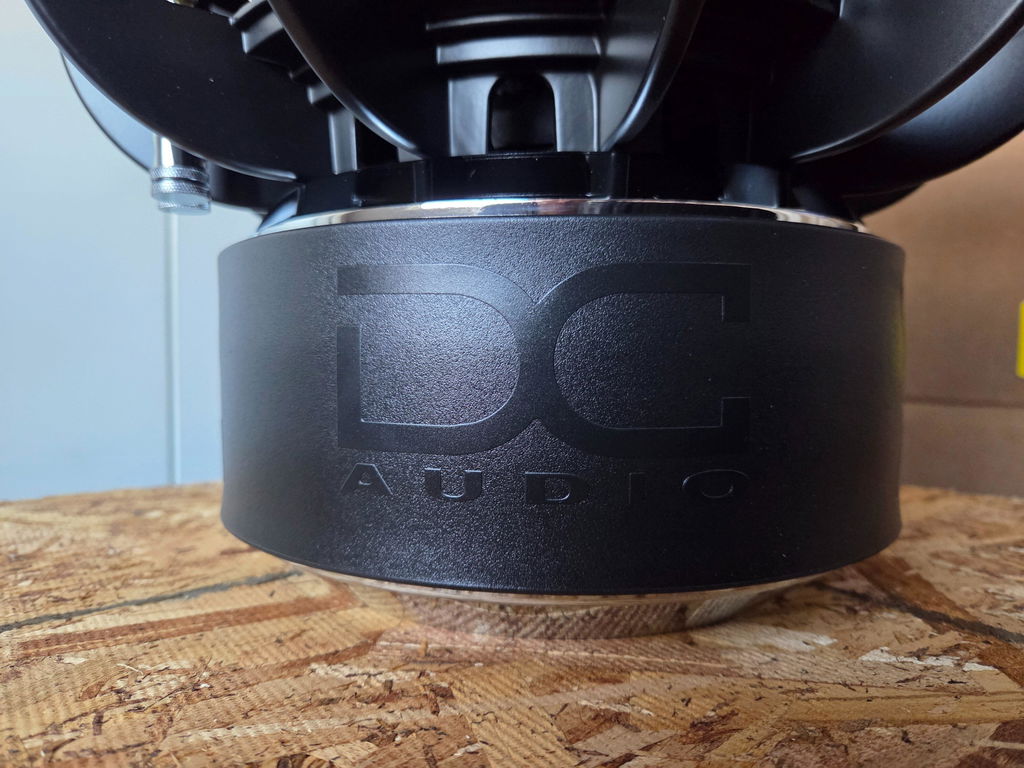

- Rubber Motor Boot
- Chrome spring loaded push terminals
- 8 Layer Flat Wound Hi-temp Aluminum Voice Coil
- Aluminum Shortning RIng
Click HERE to get a Subwoofer Box
T/S Parameters
| 10" | 12" | 15" | 18" | |
|---|---|---|---|---|
| Mounting Depth | 8.25" | 9" | 10.25" | 11.25" |
| Mounting Hole Diameter | 9.35" | 11" | 14" | 16.75" |
| Outside Driver Diameter | 11" | 12.5" | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" | 3.0" | 3.0" |
| Displacement | .18 ft | .19 ft | .23 ft | .26ft |
| Power Handling rms/peak | 2200/4400 | 2200/4400 | 2200/4400 | 2200/4400 |
| Ohm Options (dual) | .7/1/1.4/2/4 | .7/1/1.4/2/4 | .7/1/1.4/2/4 | .7/1/1.4/2/4 |
| Sd | 324 cm | 494 cm | 791 cm | 1159 cm |
| Vas | 12.42 L | 25.77 L | 66.02 L | 144.36 L |
| Cms | 0.085 Mm/n | 0.08 Mm/n | 0.07 Mm/n | 0.07 Mm/n |
| Mms | 171.77 g | 213.7 g | 306.7 g | 346.07 g |
| Fs | 41.7Hz | 38.5 Hz | 34.3 Hz | 32.3 Hz |
| Bl | 22.73 N/A | 22.73 N/A | 22.73 N/A | 22.73 N/A |
| Re | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm |
| Le | 5.2 mH | 5.2 mH | 3.5 mH | 3.5 mH |
| Qms | 11.24 |
12.92 |
8.18 | 8.32 |
| Qes | 0.35 |
0.403 |
0.706 | 0.718 |
| Qts |
0.34 | 0.391 |
0.65 | 0.661 |
| Xmax | 26mm | 26mm | 26mm | 26mm |
| Ref SPL @1 watt | 85.9 db | 87.5 db | 87.3 db | 90.4 db |
| Suggest Sealed Box | .75 ft | 1.0 ft | 2.0 ft | 3.5 ft |
| Suggested Ported Box | 1.0 ft | 1.50 ft | 3.0 ft | 5.5 ft |
The best in the business have dc subs for 15 yrs xl to lvl 5 to lvl 6 to elite
I have a 12 and it can shake the car next to me at stop lights. Not violent bass but rather precise and clean and still beats my trunk up loke the elf trying to escape. Strong motor and magnet. Connect to ps 3k amp for a great pair. Very strong vibration from the front seat. Cheaper than massaging seats too.

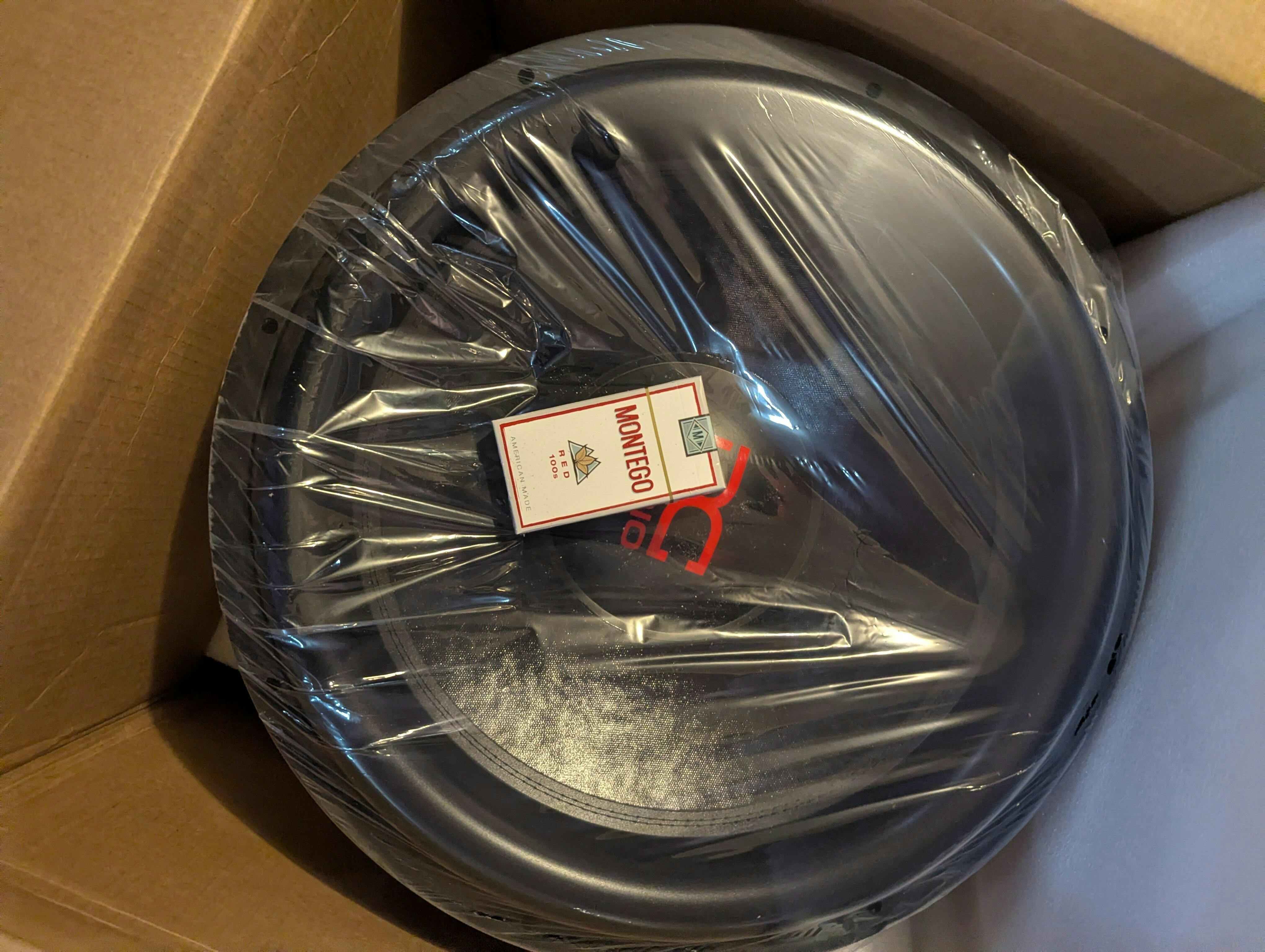

First time buying from these awesome people at DC had the best service highly recommend cuz my sh*t slamz thanks guys at DC will be buying again 18in xl
This is the loudest lowest 10 inch I've ever heard and Ive owned multiple brands this is by far the loudest 10 inch I've heard and the sound quality of cannot be matched at this power level.
Got myself 12 inch xl spl, that thing is hitting hard. Got it wired to a 3k amp and it takes it like a champ.
