5.0k 5000 watt Mono Block Amplifier
Couldn't load pickup availability
About the Product

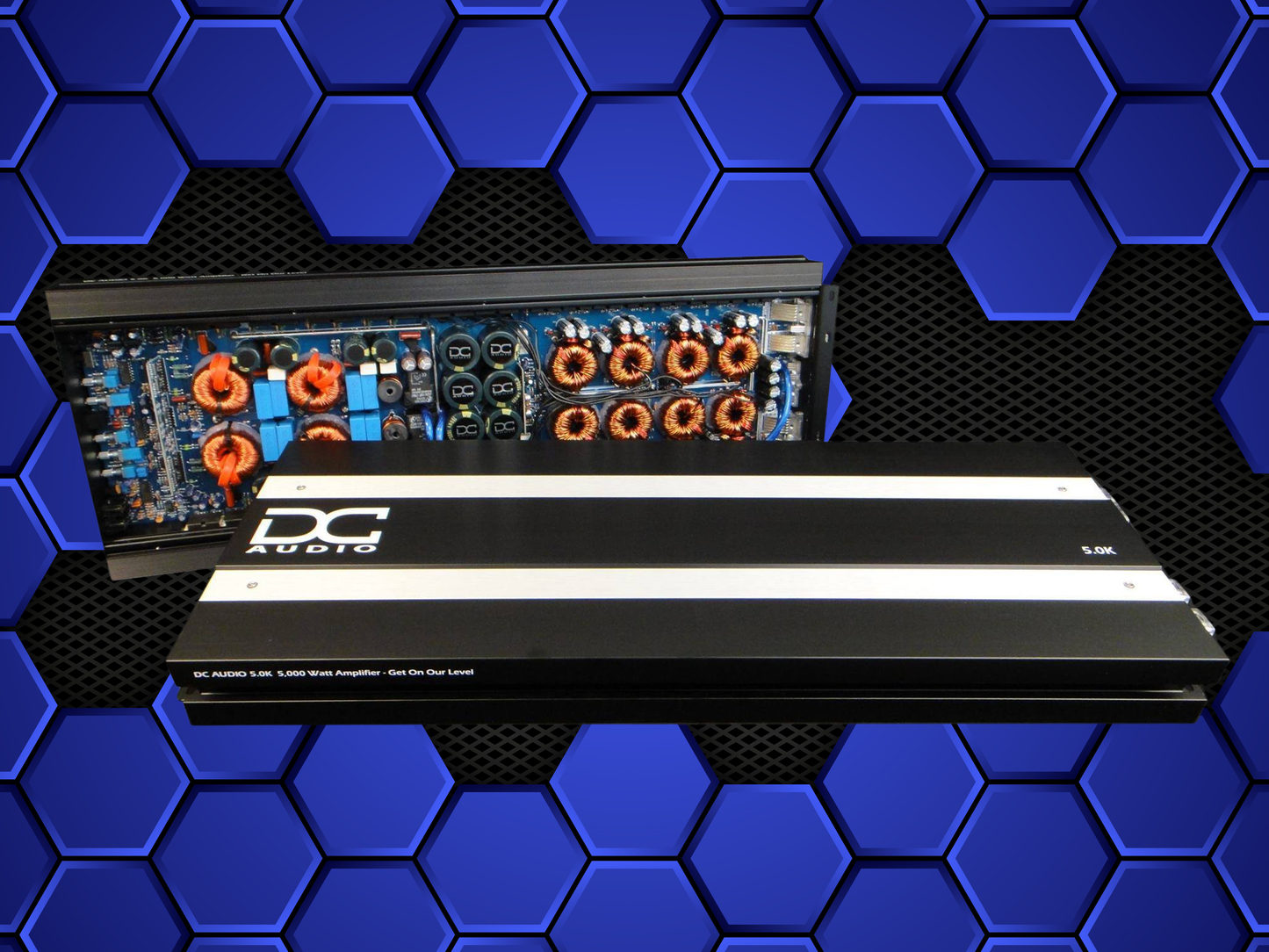

DC Audio 5.0k Amplifier
The 5.0k competition series amplifier is rated as a 5000 watt mono block. It is a linkable amp and designed to run a 1 ohm per amp or 2 ohms when linked for up to 14,600 watts from a pair. It comes with a bass knob and a clipping indicator.
Output Power (RMS):
- 900x1 @ 4 ohms 14.4 volts
- 2300x1 @ 2 ohms 14.4 volts
- 5000x1 @ 1 ohms 14.4 volts
- 10000x1 @ 2 ohm 14.4 volts LINKED
- 6000x1 @ 1 ohm 16.0 volts
- 12000x1 @ 2 ohm 16.0 volts LINKED
- 7300x1 @ 1 ohm 18.0 volts
- 14600x1 @ 2 ohm 18.0 volts LINKED
Key Features:
- 1 ohm stable
- Variable low pass filter
- Variable subsonic filter
- Variable bass boost
- RCA Pass Thru
- Linkable
- Wired remote control
- Clipping indicator
- 8awg Speaker Terminals
- Dual 1/0awg Power and Ground Inputs
Full Specs:
| DC Amp Model: | 5.0k |
|---|---|
| Input Sensitivity | 6V~0.2V |
| Frequency Response | 20Hz~250Hz |
| 24dB / Octave Crossover | YES |
| Low Pass | 35Hz ~ 250Hz |
| Subsonic Filter | 10Hz-50hz |
| Bass Boost @45hz | 0 ~ 9db |
| Phase Shift | 0 ~ 180 |
| Remote Control | Yes |
| Clip Indicator | Yes |
| Signal to Noise Ratio | dB100 |
| Damping Factor | 200< |
| THD @ 4ohms | Less than 0.1% |
| Fuse Rating | External 250 amp x 2 |
| LED Status Lights | Power and Protect |
| Master/Slave | YES |
| Heatsink Length | 25.596"/650mm |
| Heatsink Width | 9.38"/238mm |
| Heatsink Height | 2.35"/59.6mm |
My first build with DC Audio was 2 of these 5k amps on 2 level 6 18s. Hit my first year in the lanes with this combo doing 153+ sealed on the dash @29hz These amps handle higher voltages which comes in handy not that a lot of org have made 18v the standard max voltage. No way you can go wrong with these.
Ran alot of different stuff and DC has got to be the best
Great amp, lots of power, I have clamped well over 5k out of mine. Very well built and not as power hungry as some other amps around this size
Best amp I’ve bought pushing my XL Elites beautifully. Thank you again for quality products
I’ve put my 5k’s through the ringer and back and they keep on pushing with no issues. I would highly recommend any DC Audio product.
