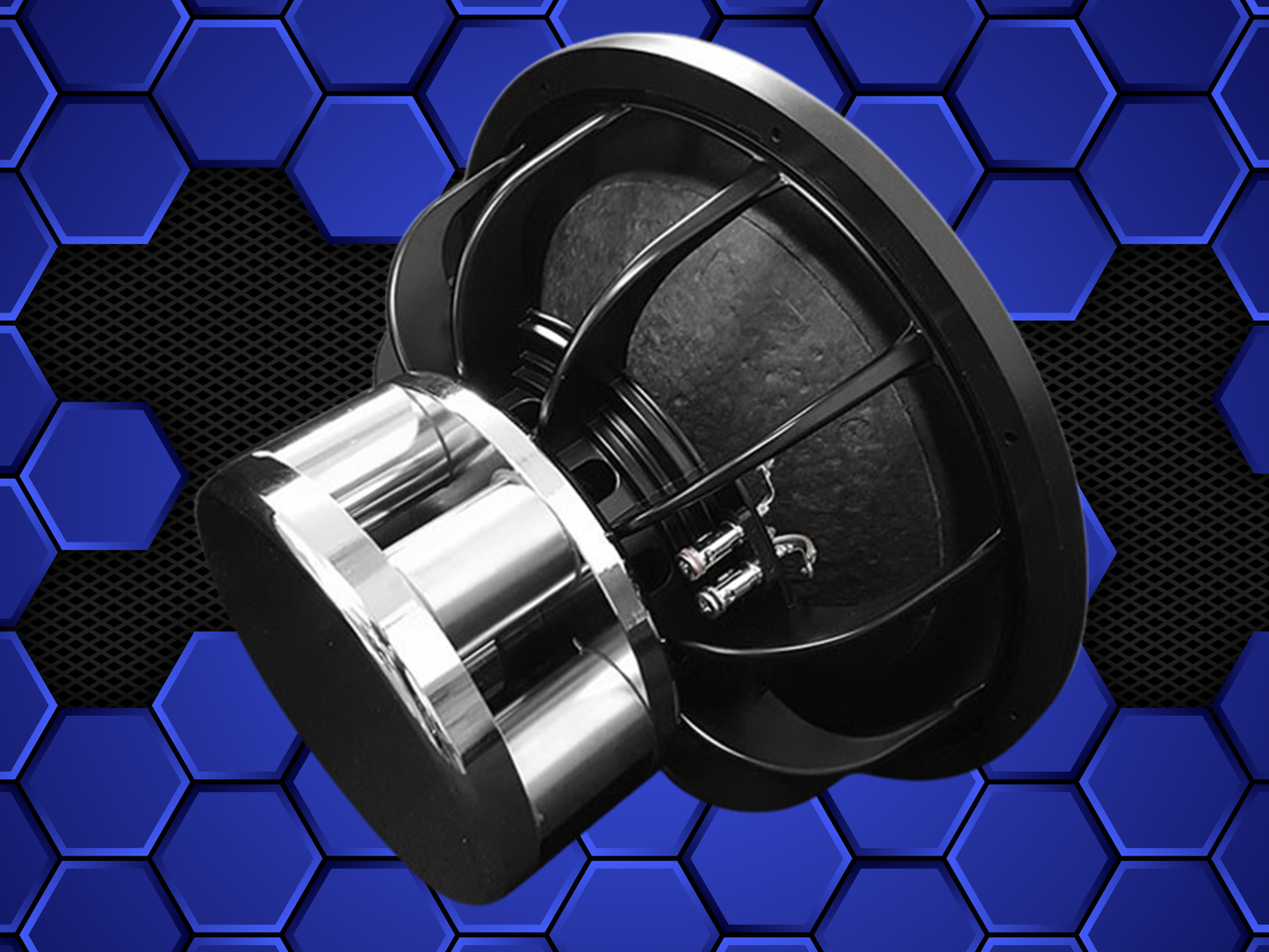

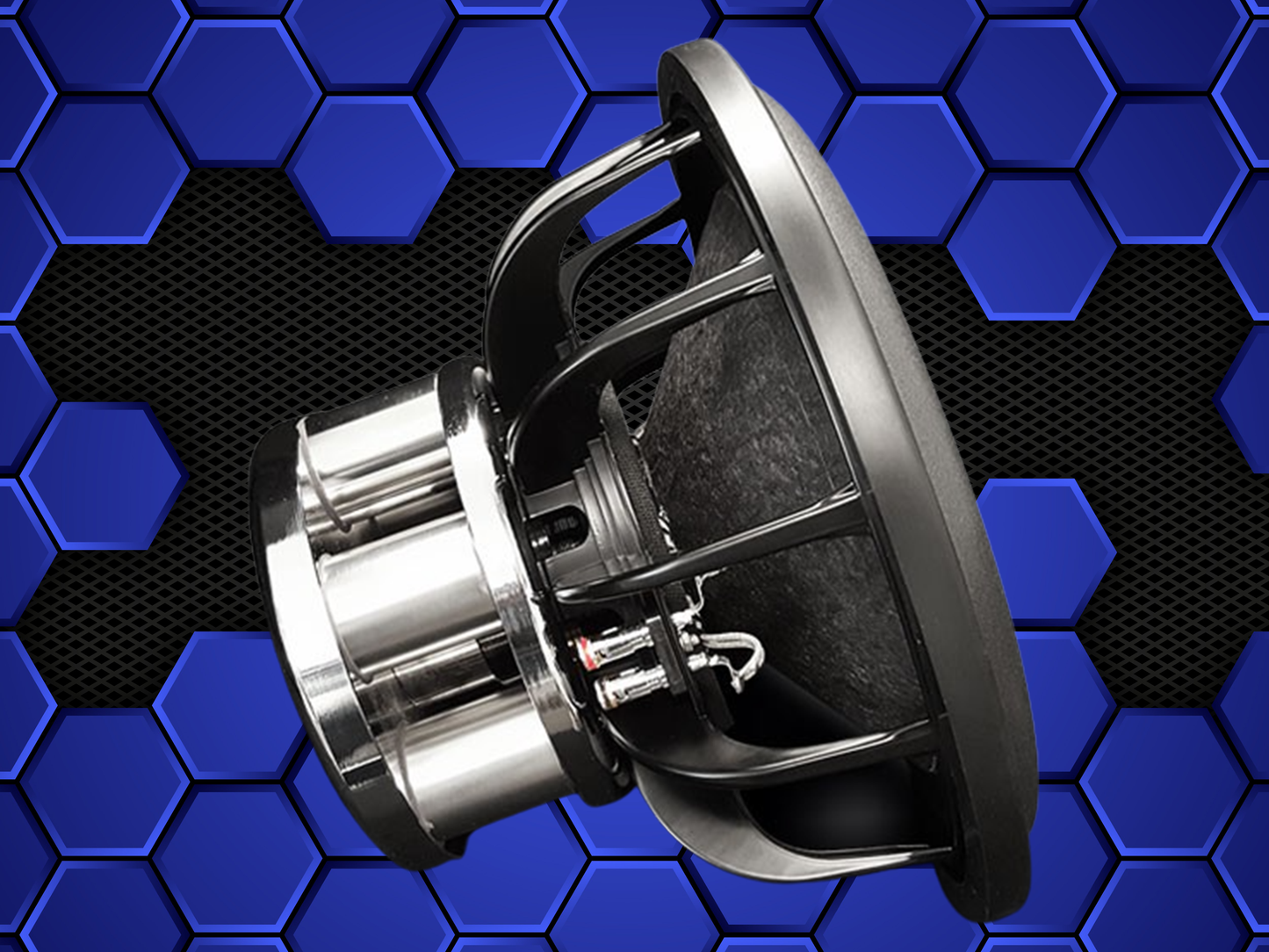

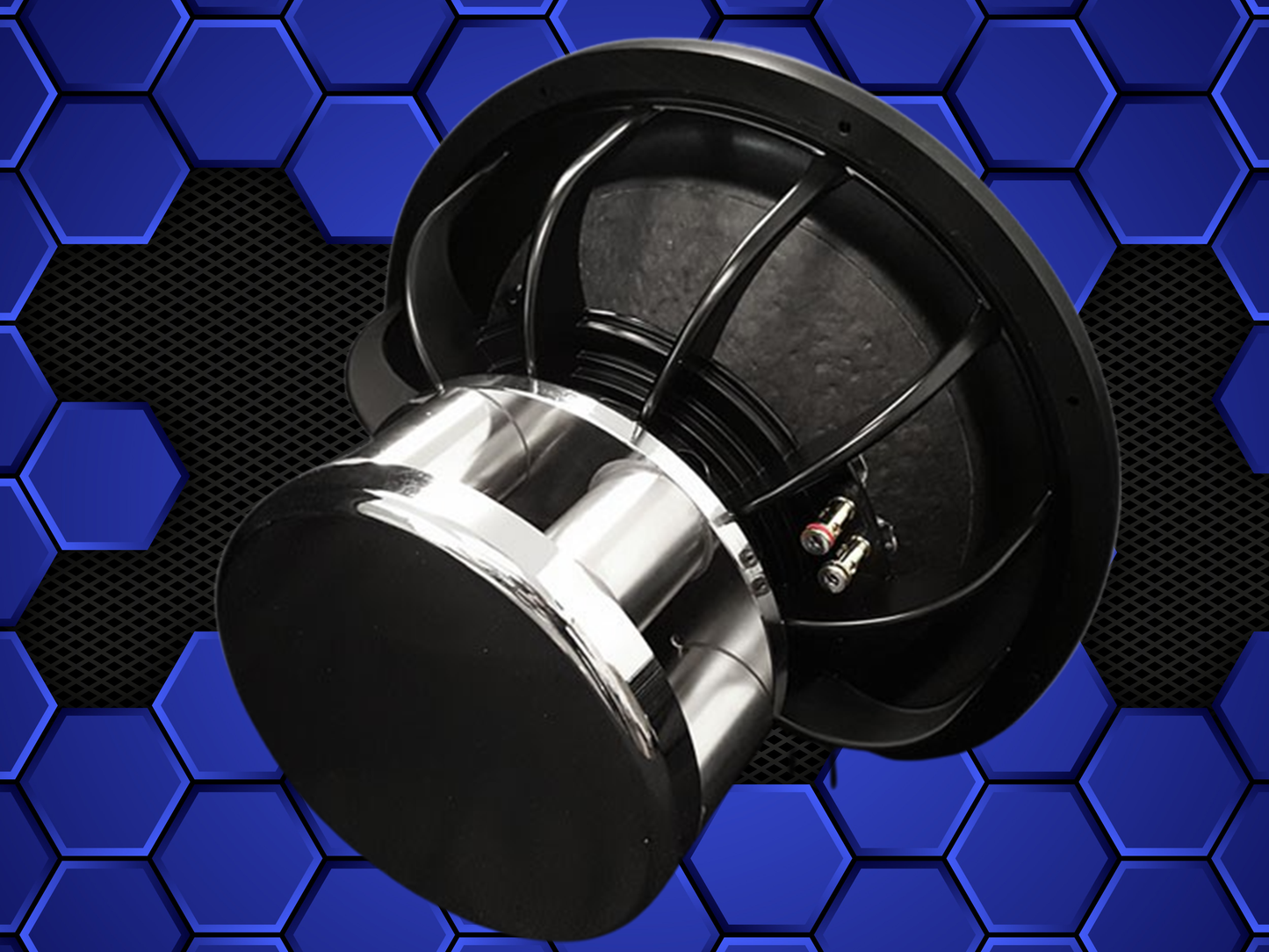

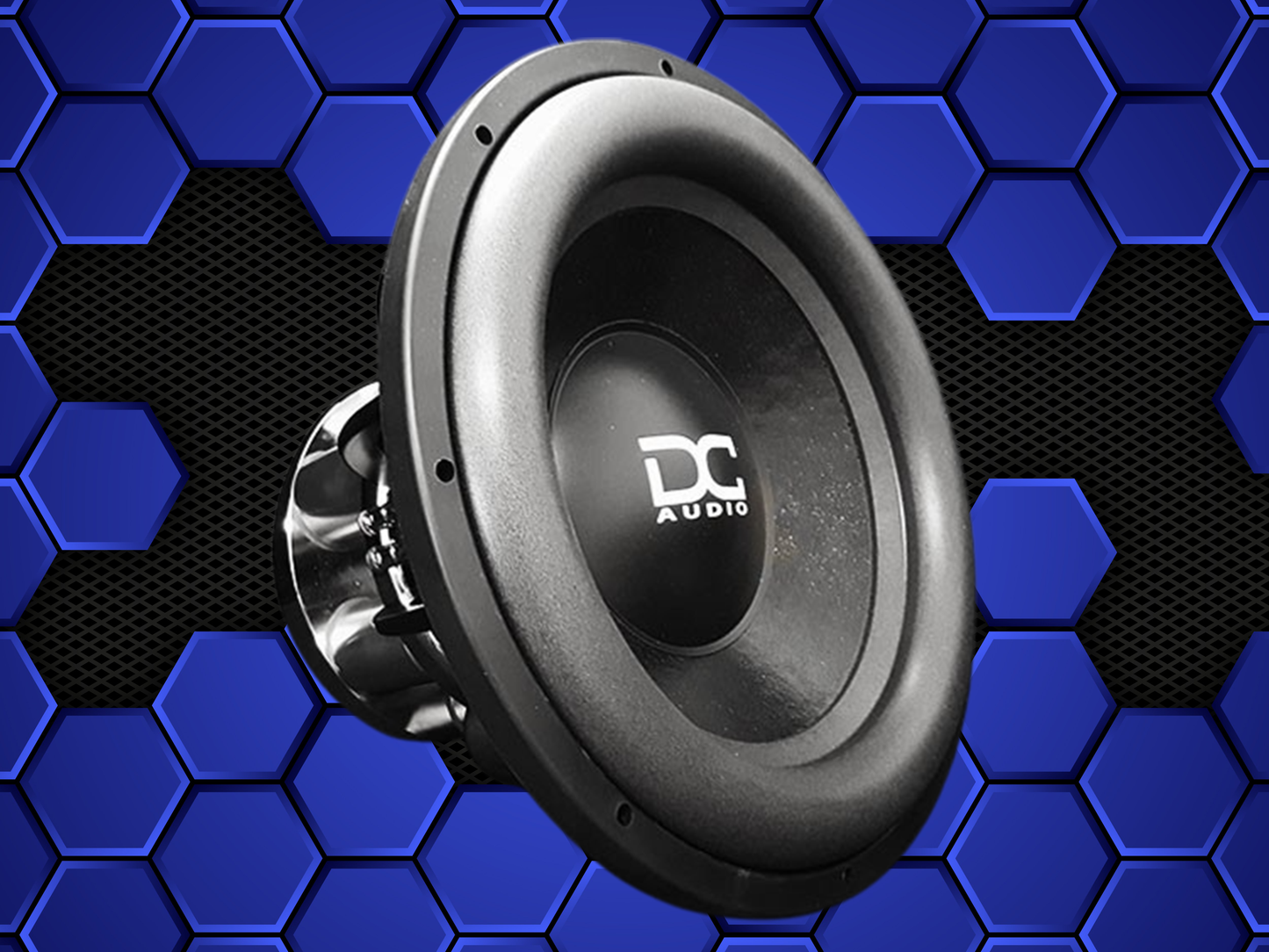

NEO 3.0 Subwoofers

$999.99 USD
$999.99 USD
Sale Sold out
Shipping calculated at checkout.
Ohm: 0.5-SS
Size: 12 inch
Secure checkout with
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

About the Product

**HAND BUILT IN THE USA**



BUILD TIME 7-14 DAYS

Neo 3.0 Subwoofer Line

2024 Cone Change : Now Comes Stock with TR Cone / Surround

2200 Watts RMS 4400 Watts Peak

Available in 15 and 18" Models

Subwoofer Description

The NEO 3.0 is a subwoofer built for SPL!! If you're looking for a SPL Championship proven subwoofer, here you go.

Custom Coil and Spider Configurations to get every tenth of a db out of it available.

Key Features

  • FULL NEO Columns (not partials set ontop of steel pillars)
  • Extremely rigid TR paper cone assembly
  • Multilayered polymer foam surround
  • Polypropylene dust cover with DC logo
  • 8” OD semi cup progressive roll spiders
  • Dual extra heavy duty interweaved tinsel lead wire
  • Cast aluminum black frame
  • FEA analyzed and optimized motor assembly – Fully CNC machined
  • Rubber mounting gasket
  • 4 AWG Chrome spring loaded push terminals
  • 3" 8 layer hi-temp flat wound aluminum voice coil

Click HERE to get a Subwoofer Box

T/S Parameters



15" 18"
Mounting Depth 9" 11"
Mounting Hole Diameter 14" 16.75"
Outside Driver Diameter 15.7" 18.5"
VC Diameter 3.0" 3.0"
Displacement .23ft .26ft
Power Handling rms/peak 2200/4400 2200/4400
Ohm Options d.7/d1/d2/d4 d.7/d1/d2/d4
Sd 791 cm 1159 cm
Vas L L
Cms  Mm/n Mm/n
Mms  g g
Fs  Hz  Hz
Bl  N/A  N/A
Re  Ohm Ohm
Le  mH  mH
Qms
Qes

Qts

Xmax 23mm 23mm
Ref SPL @1 watt db db
Suggest Sealed Box  ft  ft
Suggested Ported Box 3.0 ft 5.5 ft
