PS1200x4 - Mini 4 Channel Amplifier
Couldn't load pickup availability
About the Product

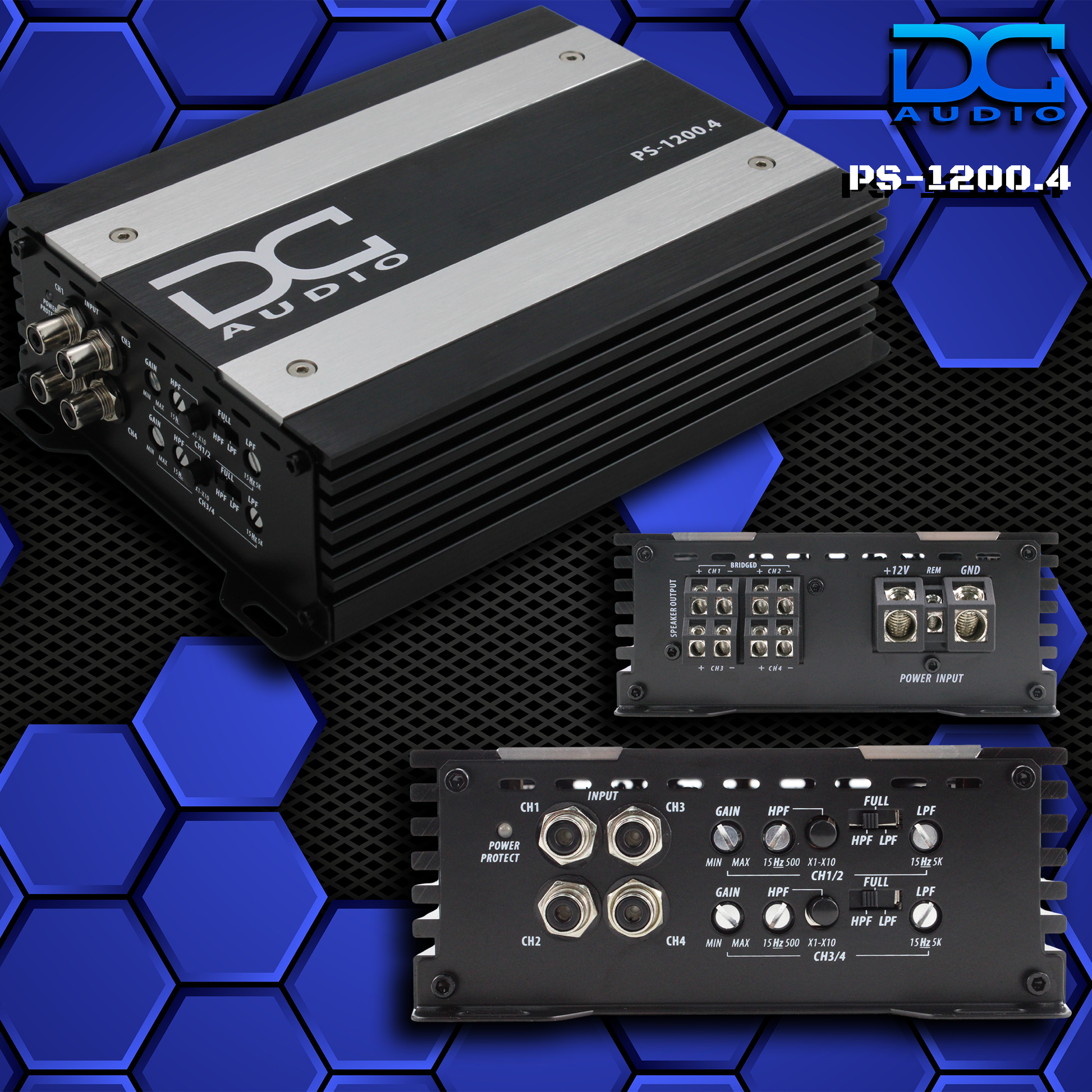

The DC-PS1200x4 is a compact series full bridge amplifier capable of making 1,200 watts. It’s High power 4 Channel amplifier. It has 4awg inputs and can be ran 4 ohms per channel, 2 ohms per channel or bridged at 4ohms
Output Power (RMS)
4 ohm 190Wx4 @ 14.4 Volts
2 ohm 300Wx4 @ 14.4 Volts
4ohm rms bridged power : 600W x 2
Key Features
4 ohm bridged stable
2 ohm stereo stable
Variable low pass filter
Variable High pass filter
Full Range Output
9-16.5 Volts Capable
x10 Crossover Switches
Tiffany Style RCA Jacks
Power / Protect LED
AMP SPECS:
| DC Amp Model: | PS-1200x4 |
|---|---|
| Input Sensitivity | 4V~0.4V |
| Frequency Response | 10Hz~20KHz |
| 12dB / Octave Crossover | YES |
| High / Low Pass | 50Hz ~ 500Hz |
| Subsonic Filter | NO |
| Bass Boost @45hz | NO |
| Phase Shift | NO |
| Remote Control | NO |
| Clip Indicator | No |
| Signal to Noise Ratio | dB90 |
| Damping Factor | 90< |
| THD @ 4ohms | Less than 1% |
| Fuse Rating | External 100 amp |
| LED Status Lights | Power/Protect |
| Master/Slave | NO |
| Heatsink Length | 7.76"/197mm |
| Heatsink Width | 5.23"/133mm |
| Heatsink Height | 2.3"/60.0mm |
This Mimi 4 channel is perfect for small places. It has enough power for any door speakers it’s hooked up to, I love the quality of sound and is perfect when paired with my mini 2k amp! Dc is the way to go for me!
Small compact and perfect fit in HD Street glide. Plenty of power, and in my opinion sounds better than other brands of similar size. Defiantly our new qo to amp for HD applications. Not to mention the price point and best customer service in the business.
Best in the business
This amp is tough. But just like any other DC audio products they speak for them selfs
We install these like crazy due to the quality & amount of sound/power they produce in such a small footprint. Cant beat it
