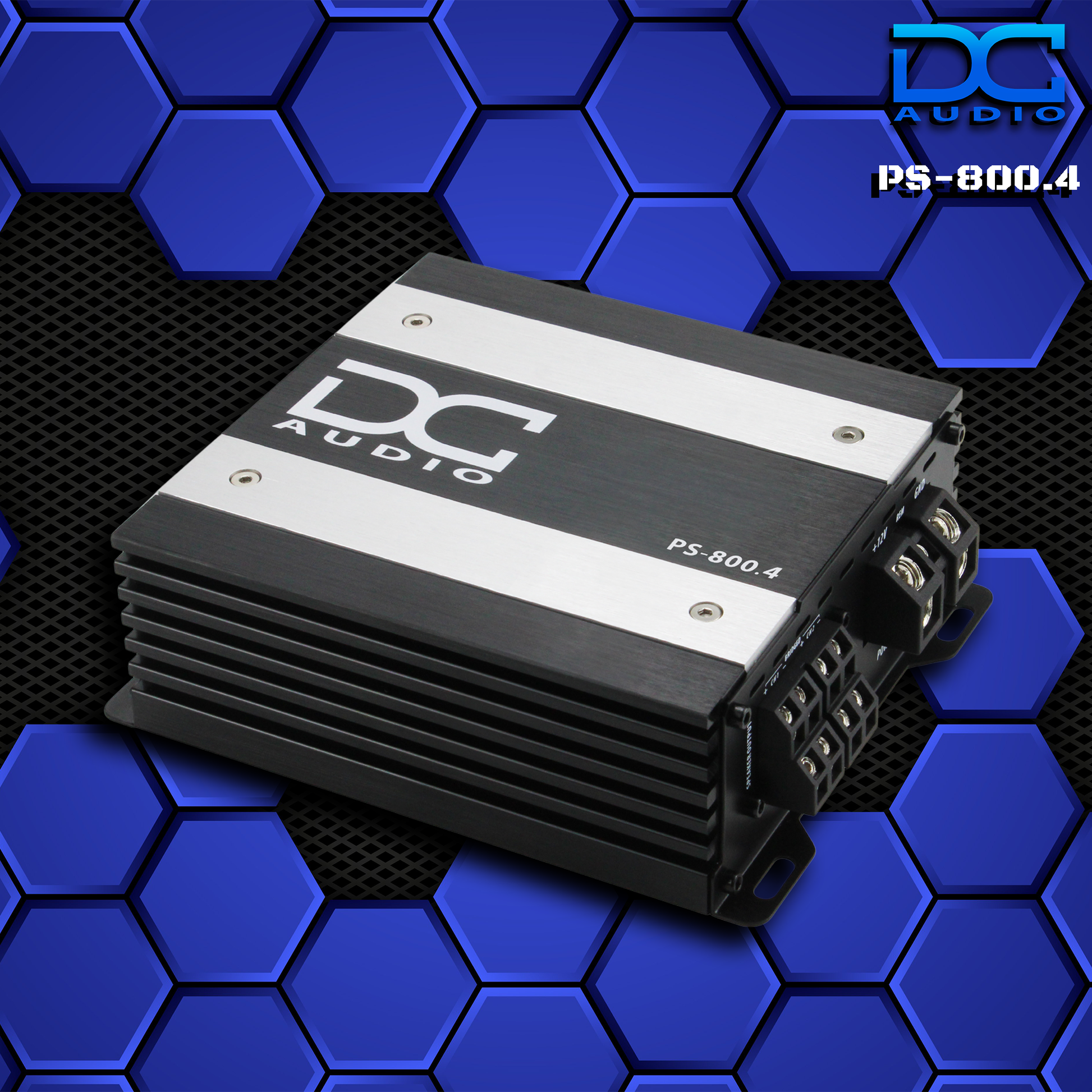

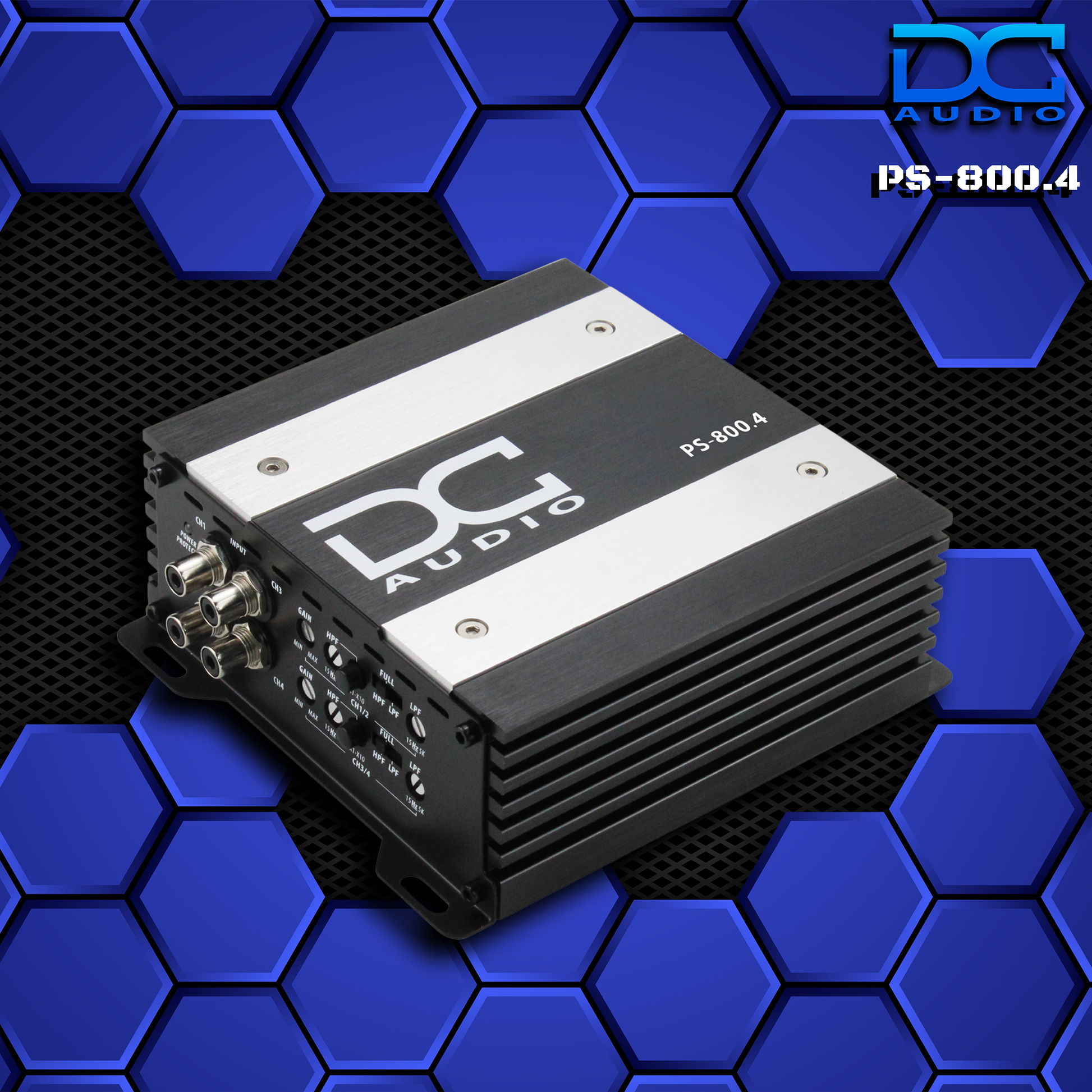

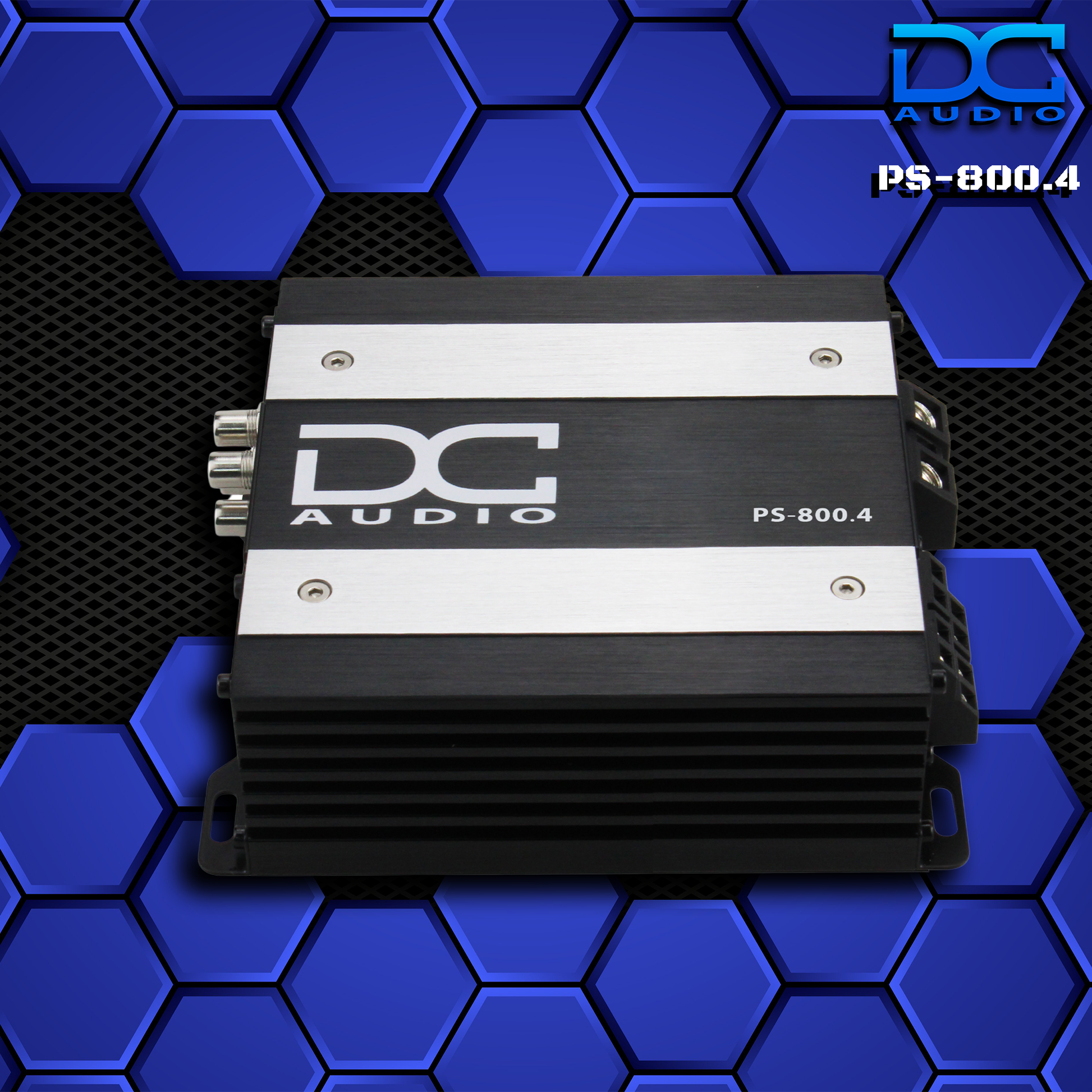

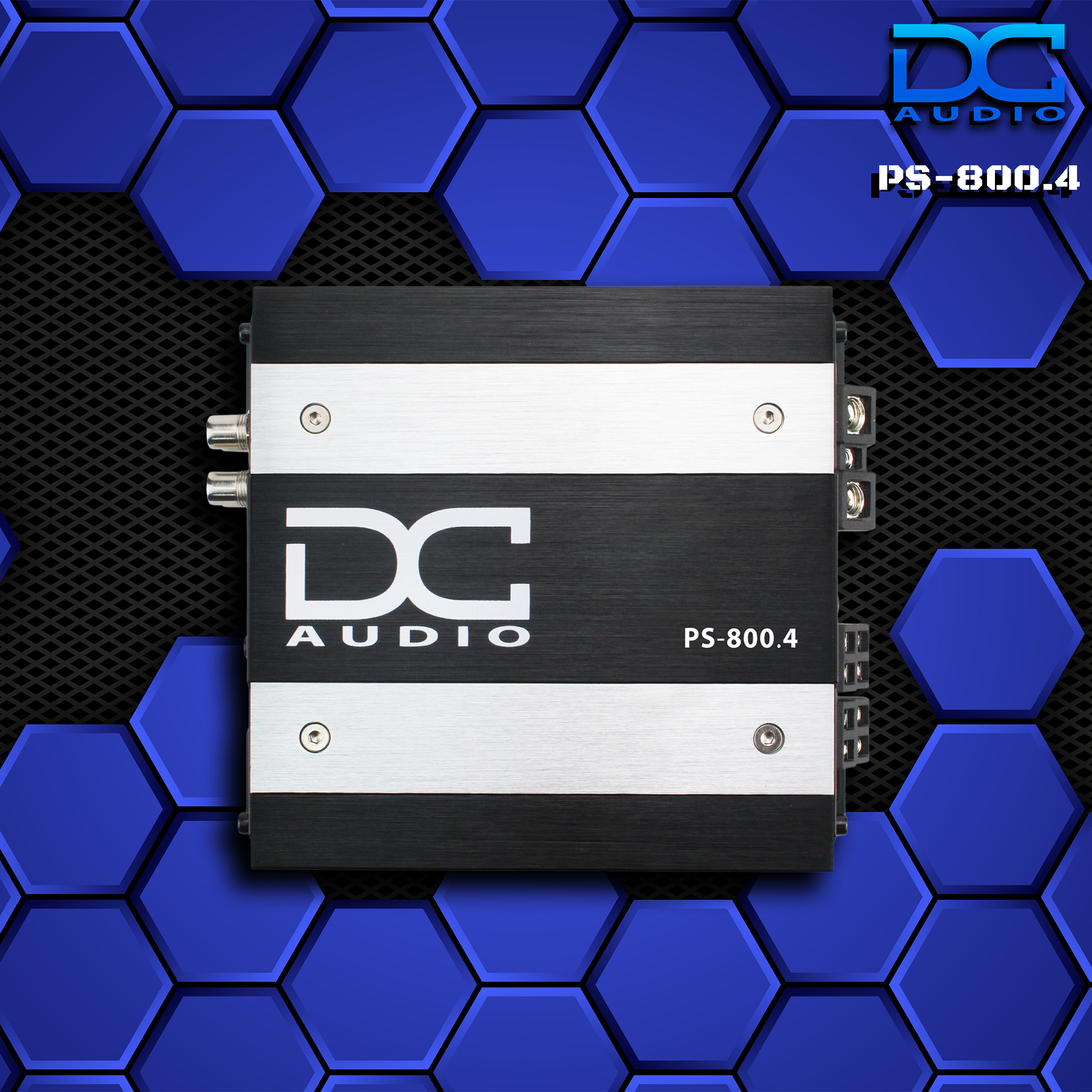

PS800x4 - Mini 4 Channel Amplifier

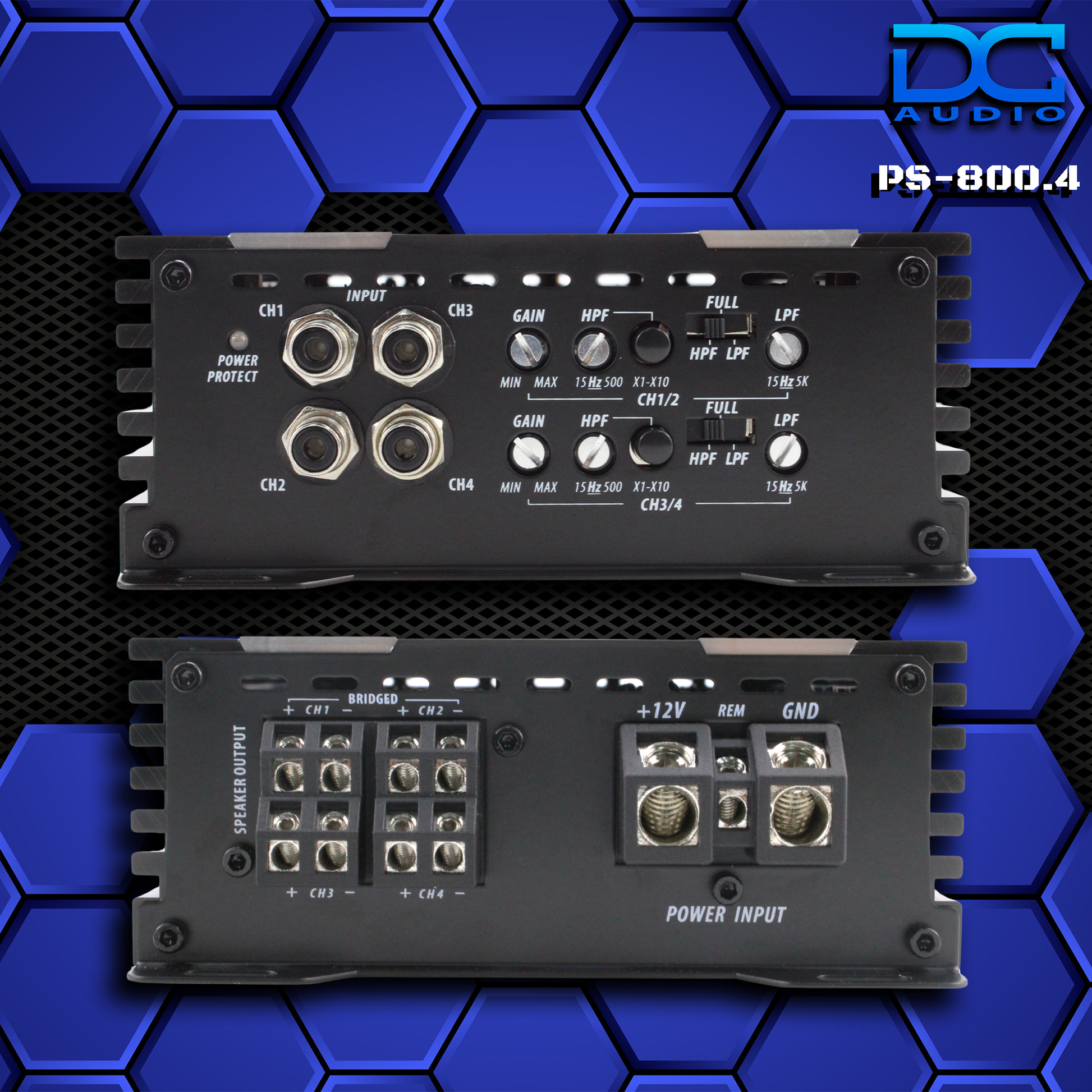

The DC-PS800x4 is a compact series full bridge amplifier capable of making 800 watts. It’s High power 4 Channel amplifier. It has 4awg inputs and can be ran 4 ohms per channel, 2 ohms per channel or bridged at 4ohms

Output Power (RMS)

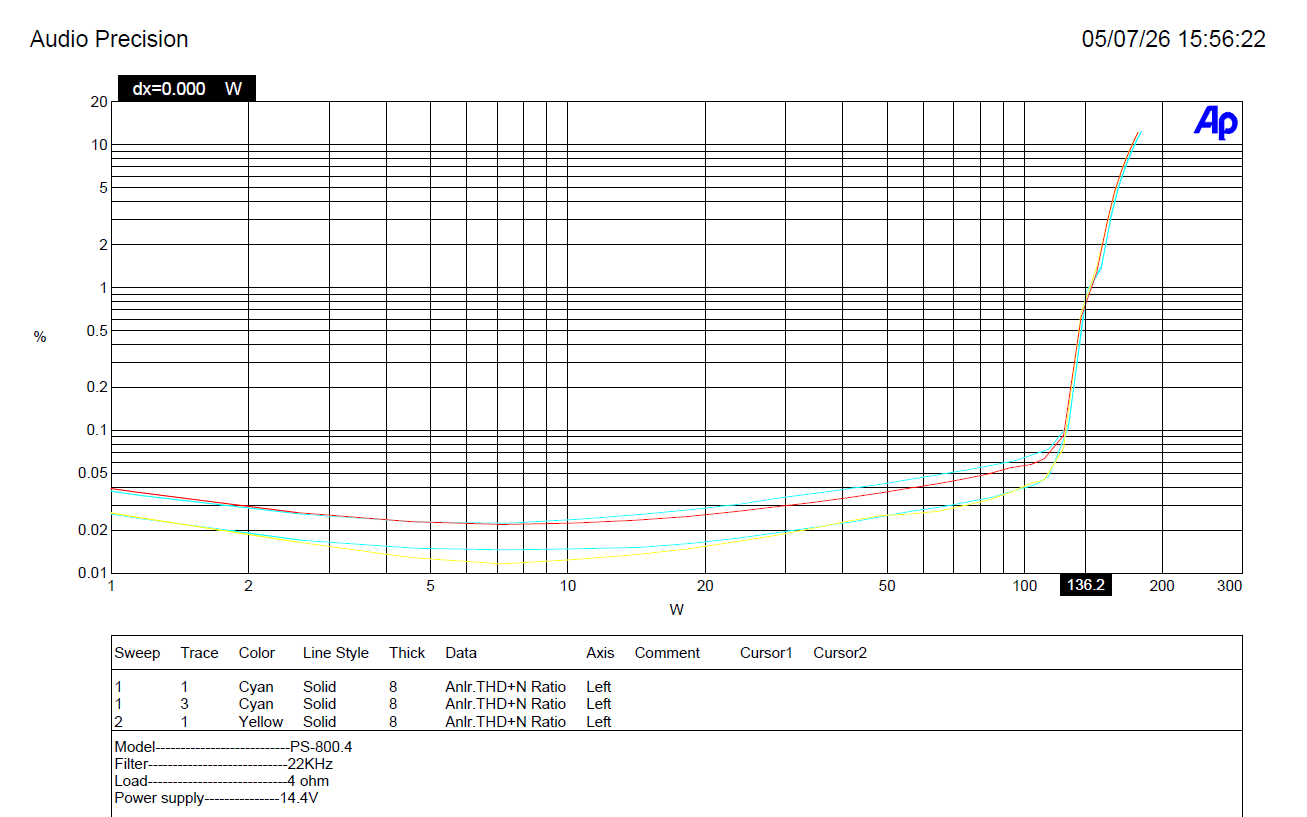

4 ohm 130Wx4 @ 14.4 Volts

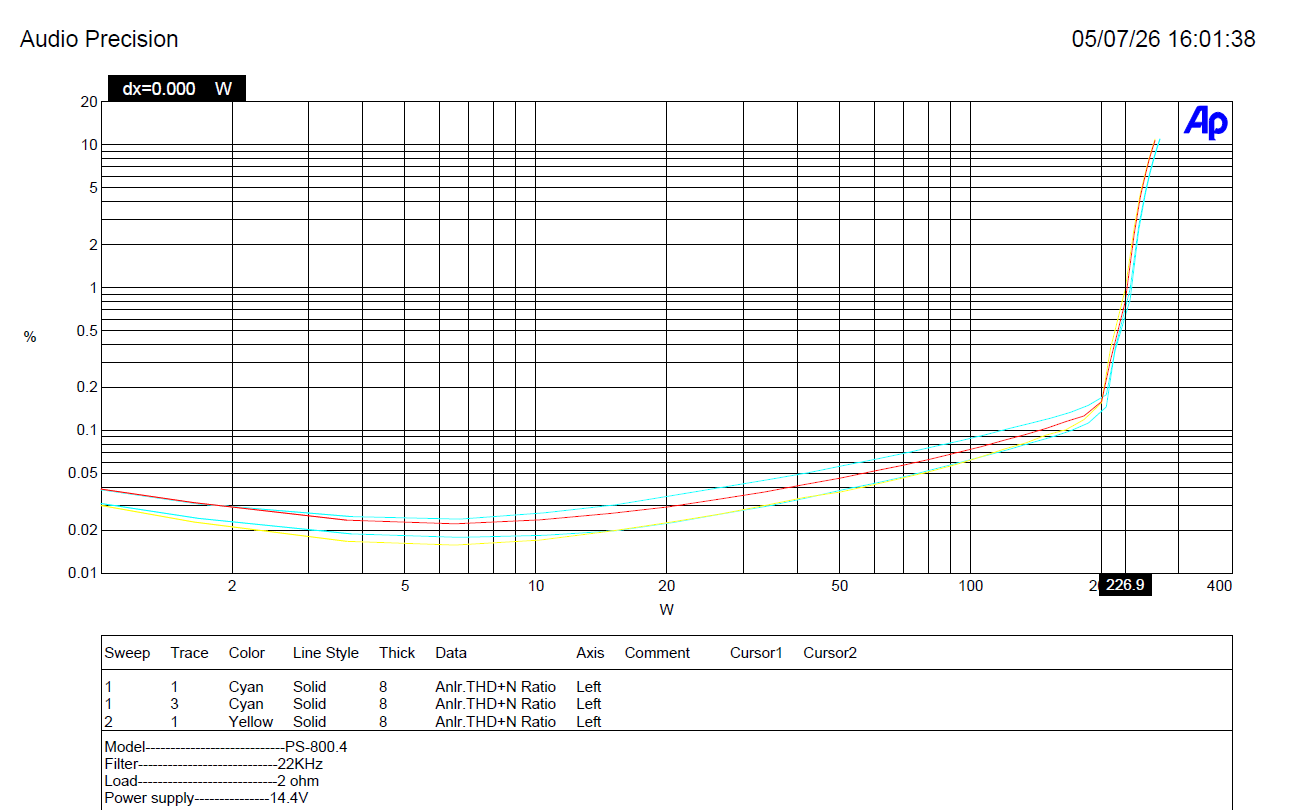

2 ohm 225Wx4 @ 14.4 Volts

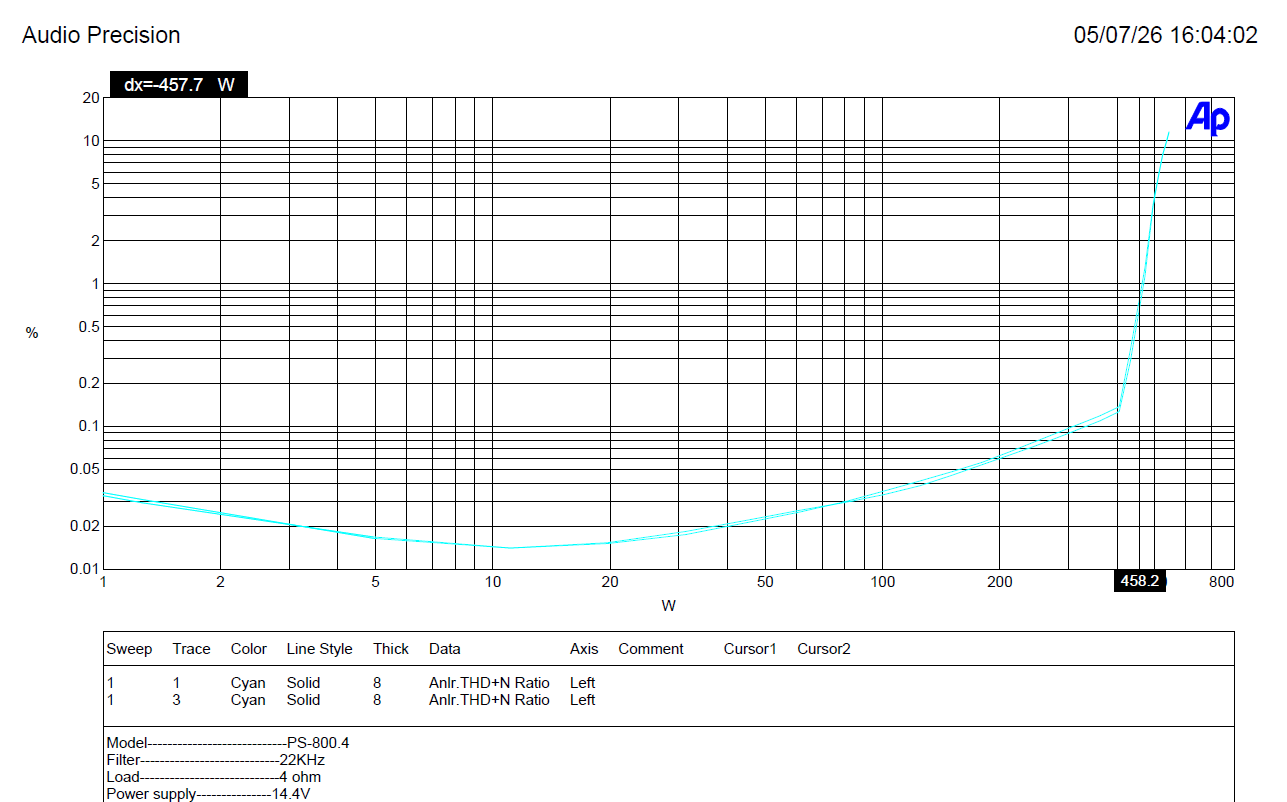

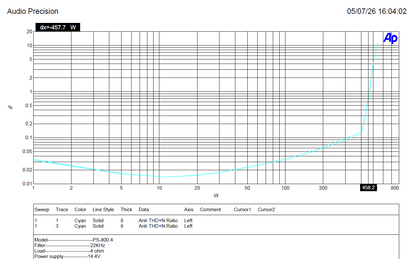

4ohm rms bridged power : 450W x 2

Key Features

4 ohm bridged stable

2 ohm stereo stable

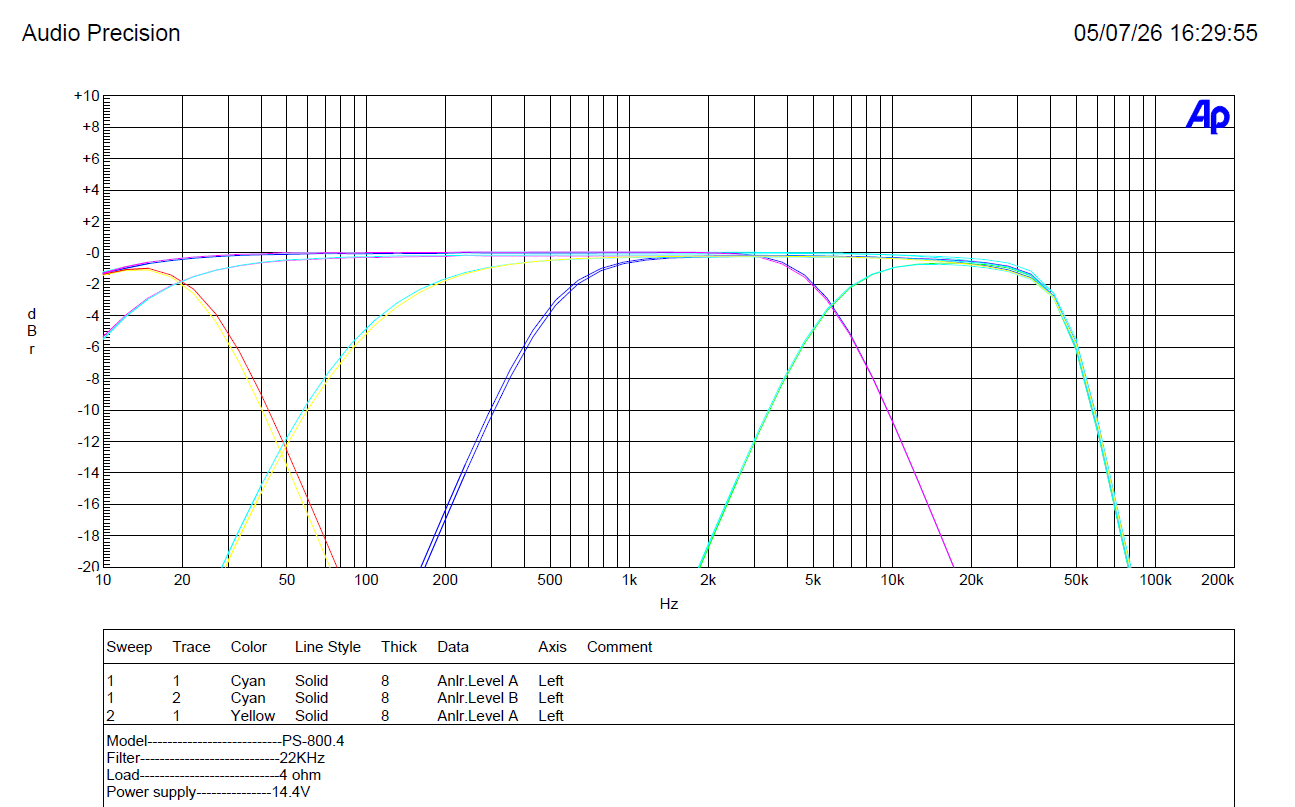

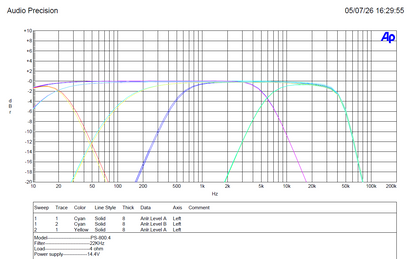

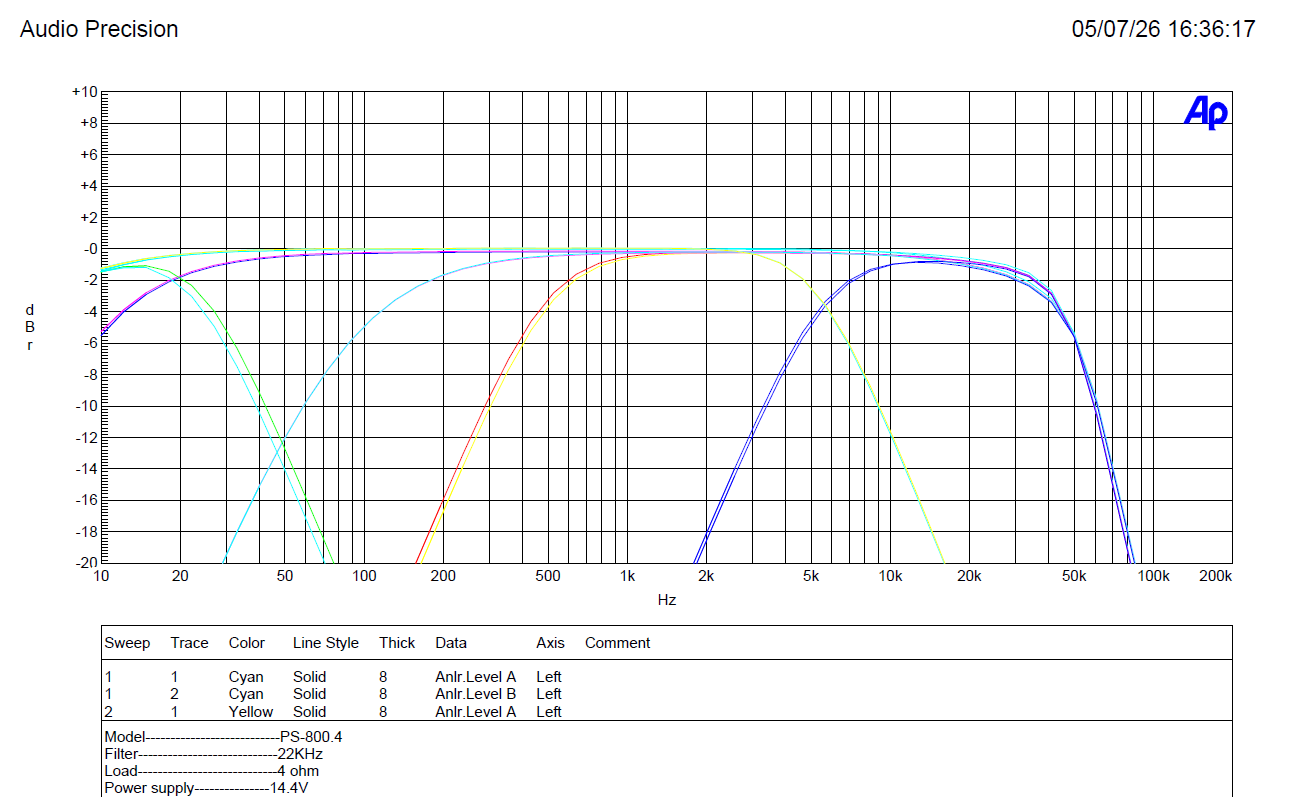

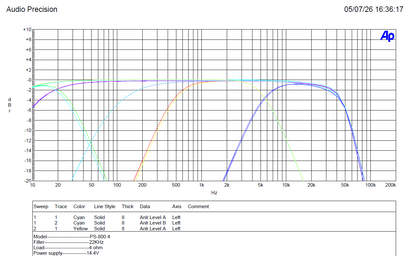

Variable low pass filter

Variable High pass filter

Full Range Output

9-16.5 Volts Capable

x10 Crossover Switches

Tiffany Style RCA Jacks

Power / Protect LED
