XL Elite Subwoofers
About the Product
BUILD TIME
DC Audio Level XL ELITE Subwoofer
2024 Cone Change : Now Comes Stock with LR Cone / Surround
Model: M4 XL ELITE
Sizes Available: 12,15 and 18 Inch Models
Power Handling: 2200 Watts RMS 4400 Watts Peak

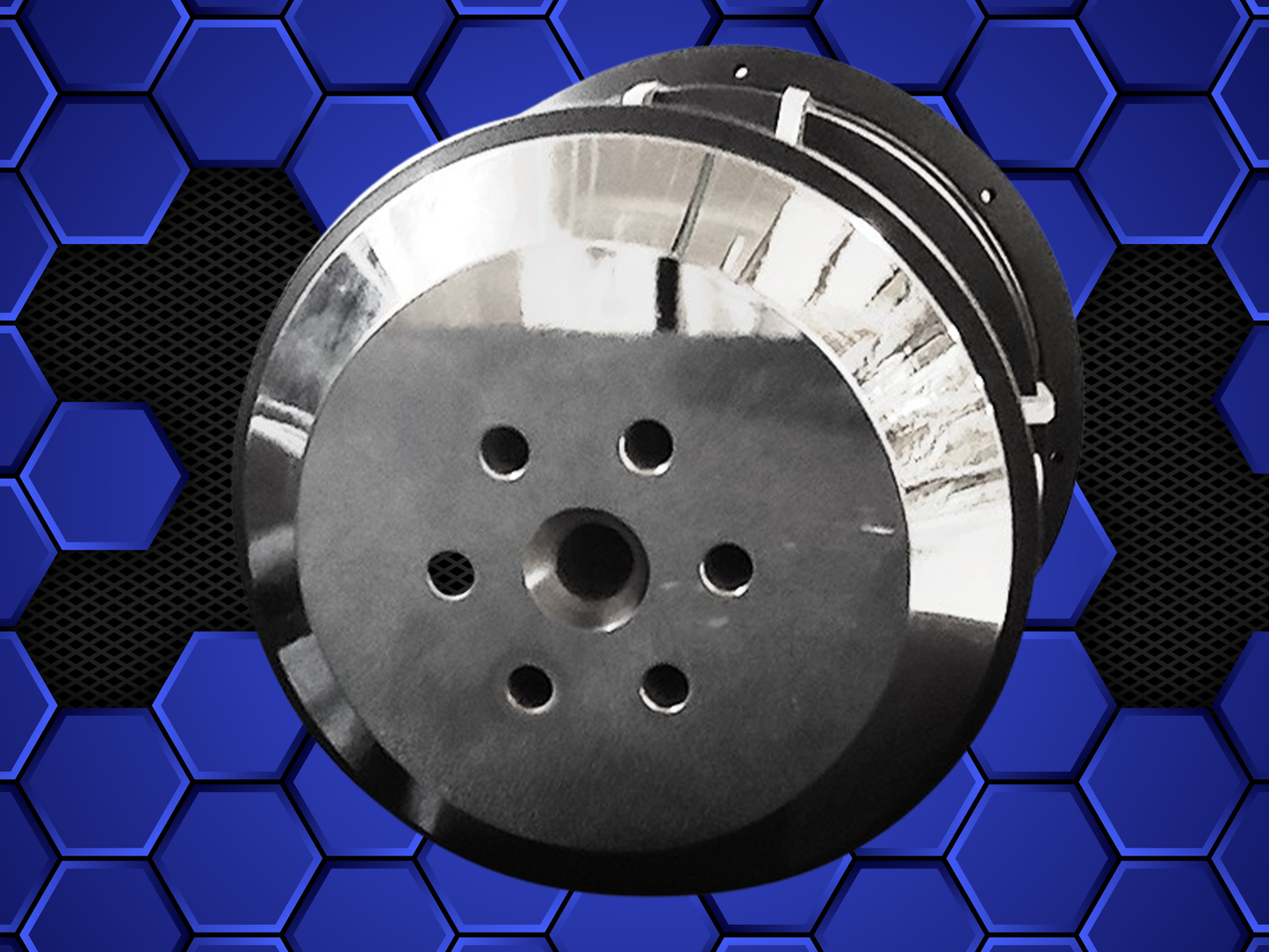

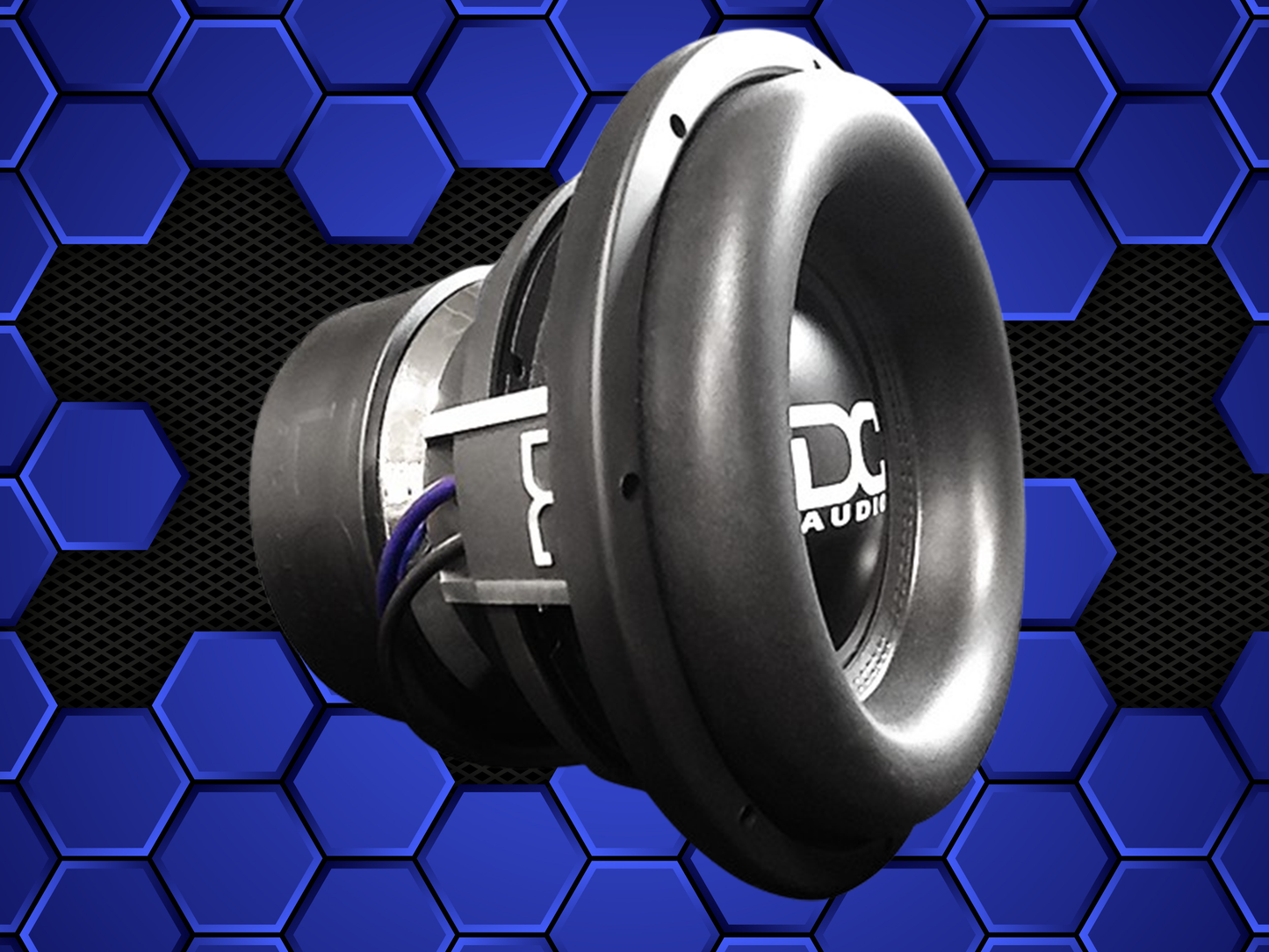

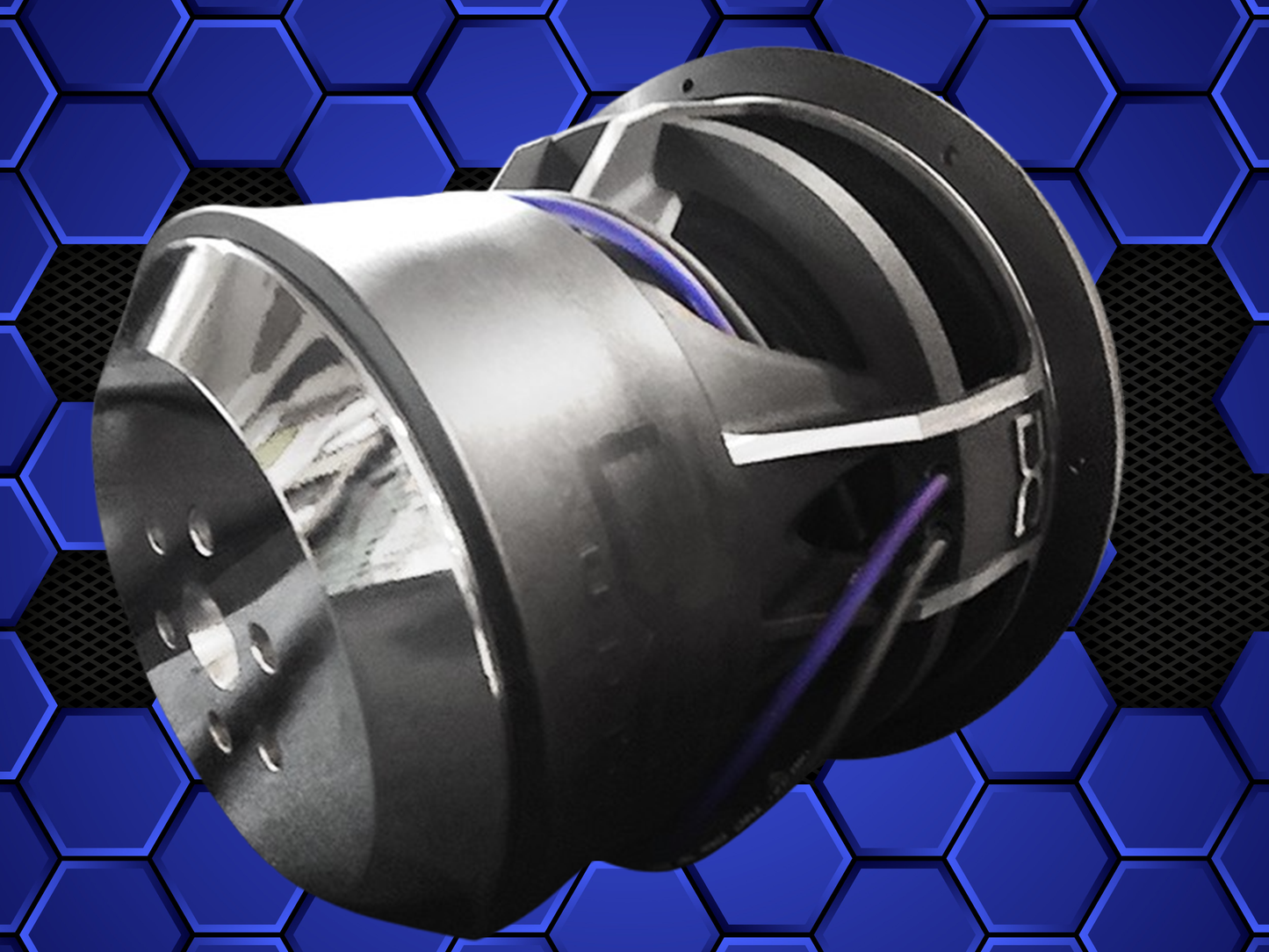

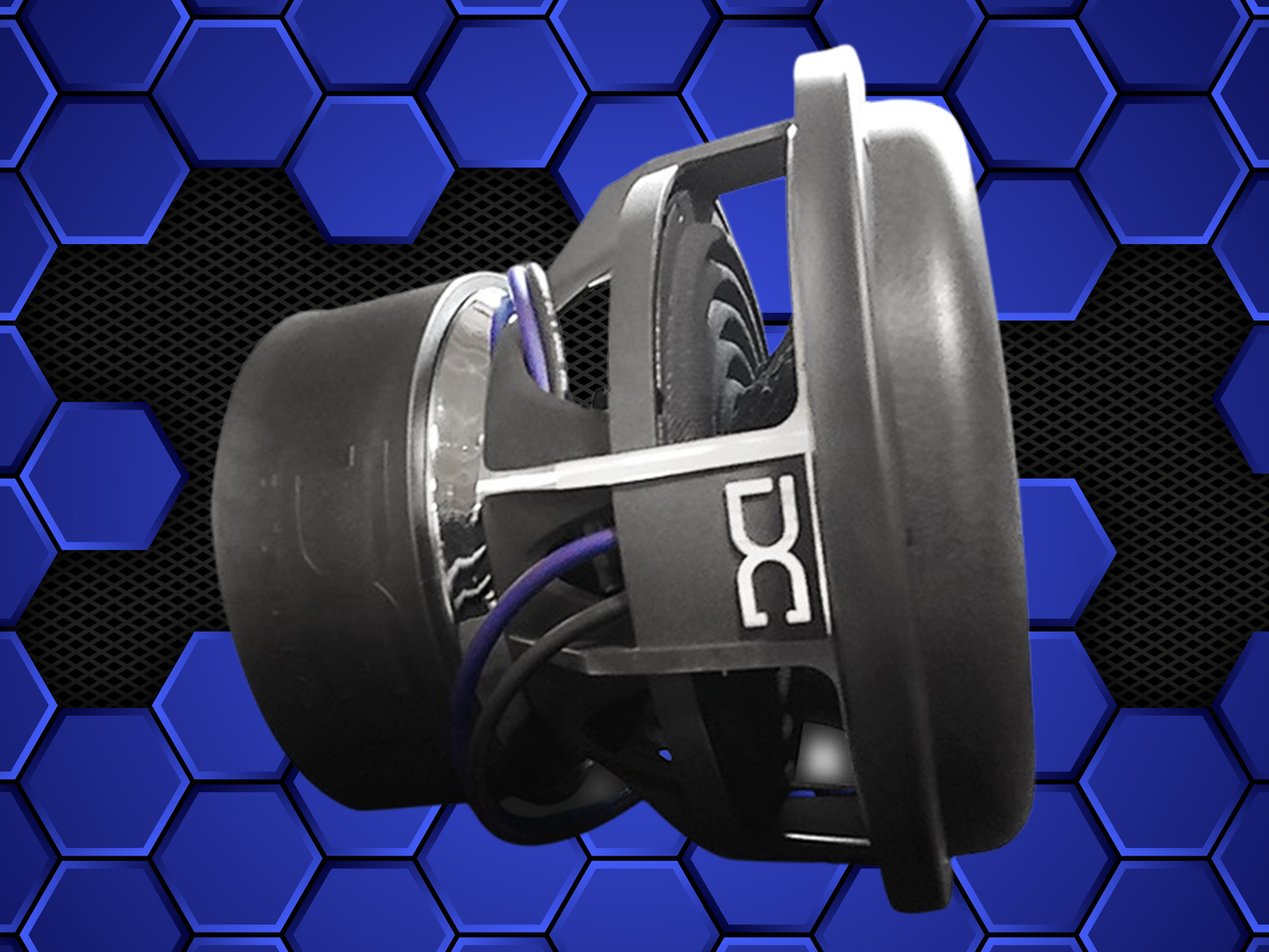

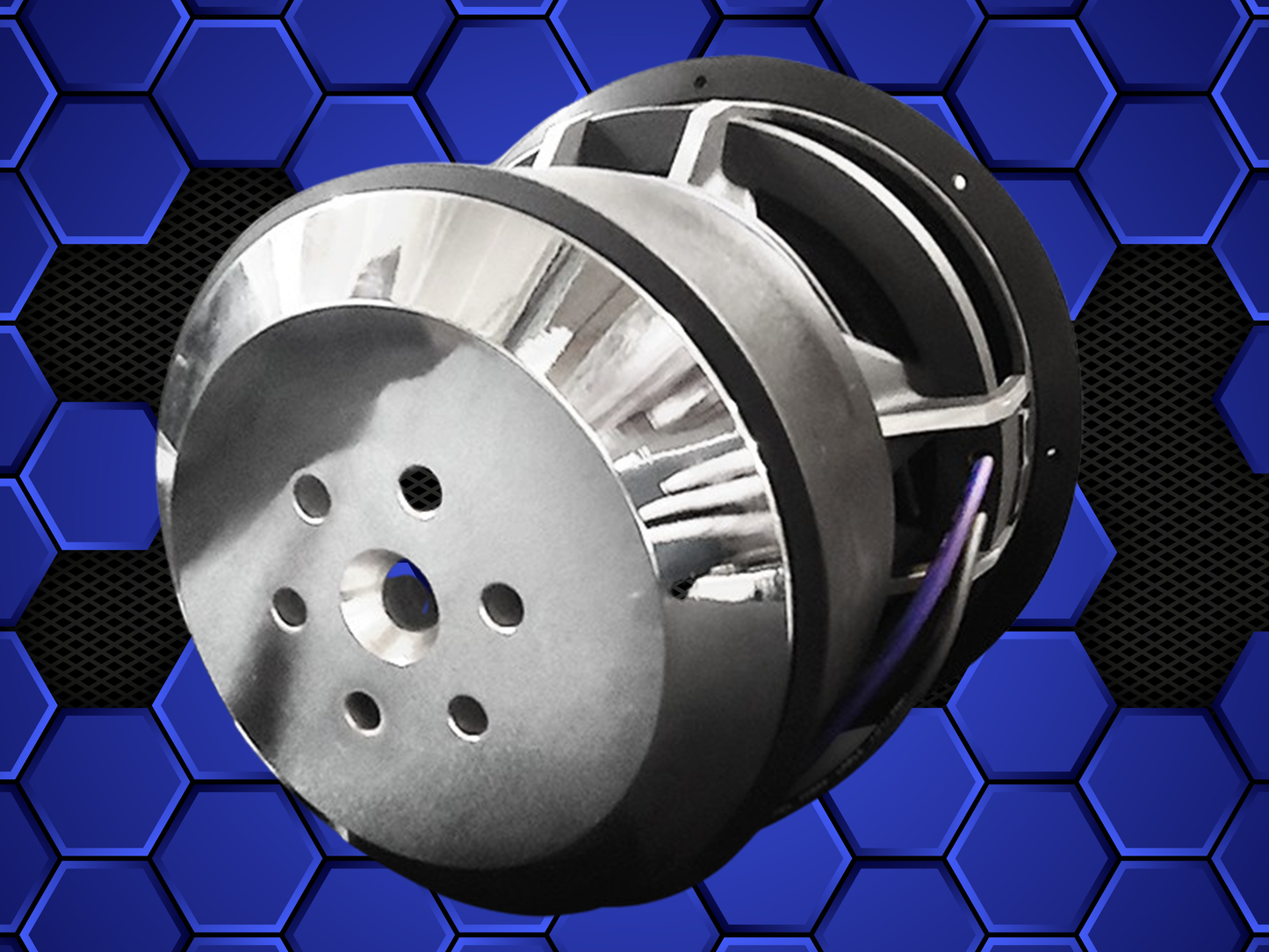

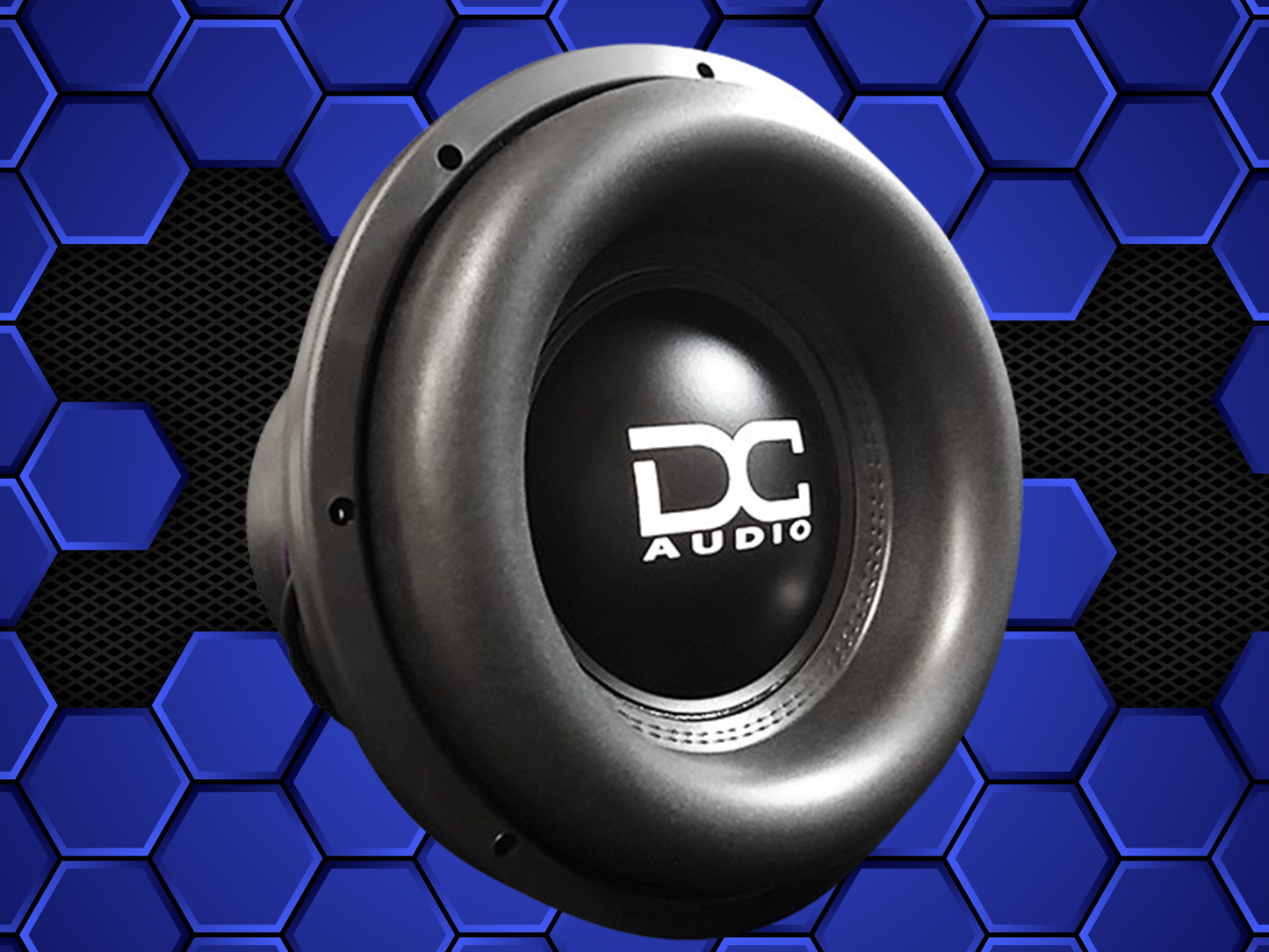

The XL m4 ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.
The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 15 and 18!!
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Quad 10"OD Spiders
- Dual Extra heavy duty interweaved tinsel lead wire
- Cast Heavy Duty DC Aluminum black & Grind frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- 8 Awg DC OFC Direct Leads
- 3" 8 Layer Flat Wound Hi-temp Aluminum Voice Coil
T/S Parameters
10" | 12" | 15" | 18" | |
---|---|---|---|---|
Mounting Depth | N/A |
9.75" | 11" | 12" |
Mounting Hole Diameter | N/A | 11.15" | 14.25" | 16.90" |
Outside Driver Diameter | N/A | 12.5" | 15.7" | 18.5" |
VC Diameter | N/A | 3.0" | 3.0" | 3.0" |
Displacement | N/A | .19 ft | .23 ft | .26ft |
Power Handling rms/peak | N/A | 2200/4400 | 2200/4400 | 2200/4400 |
Ohm Options | N/A | d.7/d1/d2/d4 | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
Sd | N/A | 494 cm | 791 cm | 1159 cm |
Vas | N/A | 22.368 L | N/A L | 129.16 L |
Cms | N/A | 0.076 Mm/n | N/A Mm/n | 61.35 um/n |
Mms | N/A | 332.5 g | 367.4 g | 534.19 g |
Fs | N/A | 31.63 Hz | 30.1 Hz | 27.8 Hz |
Bl | N/A | 24.165 N/A | 23.73 N/A | 26.49 N/A |
Re | N/A | 4.169 Ohm | 1.8 Ohm | 4.66 Ohm |
Le | N/A | 5.539 mH | N/A mH | 4.42 mH |
Qms | N/A | 6.204 |
6.31 |
8.27 |
Qes | N/A | 0.4717 |
0.37 |
0.62 |
Qts | N/A | 0.4384 |
0.35 |
0.577 |
Xmax | N/A | 34mm | 34mm | 34mm |
Ref SPL @1 watt | N/A | N/A | 90.3 db | 88.25 db |
Suggest Sealed Box | N/A | 1.0 ft | 2.0 ft | 3.5 ft |
Suggested Ported Box | N/A | 1.50 ft | 3.25 ft | 5.5 ft |
Being the lowest of the elite series these things don’t mess around take tons of power with hella excursion
i have 4 of those on two dc audio 5k at .5ohm and they get down. These subs don't disappoint and i know can take way more power then im giving them.
This sub is the best by far a little pricey but well worth it, I’m not pushing it like it needs to be but yet it’s still mind blowing I’m only running one in a 300 and killing it this is a must have sub to turn heads and piss off the neighbors thanks DC Audio for a amazing product!!!!!!
These subs are phenomenal. I have a pair of the 12s on a little over 7k rms in a extended cab Chevy pickup. You can turn it up and step outside of truck and watch the doors flexing and see the roof ripple when it hits. Truly an impressive sub for any bass head. It’s a must have if you are looking for that serious bass that you can here from blocks away. Just make sure you got the power and juice to run them because they will take some serious power and they just keep performing the more you give them. They take my 7500.1 and don’t miss a beat. Can’t go wrong with these subs. I’ve yet to have anything from DC Audio that doesn’t impress. DC FTW
