About the Product
**HAND BUILT IN THE USA**
BUILD TIME
DC Audio Level XL ELITE Subwoofer
2024 Cone Change : Now Comes Stock with LR Cone / Surround
Model: M4 XL ELITE
Sizes Available: 12,15 and 18 Inch Models
Power Handling: 2200 Watts RMS 4400 Watts Peak
The XL m4 ELITE is an Evolution of our #1 Selling XL Subwoofer line. We have redesigned the motor giving it a fresh new look, Added a pole vent and larger magnets, FEA optimized it and mated it with the DC Frame using 10 inch spiders.
The sub came from demand. XL style motor, 3 inch 8 layer coil, 10 inch spiders and the “famous for its performance and good looks” DC Frame in 15 and 18!!
Key Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Quad 10"OD Spiders
- Dual Extra heavy duty interweaved tinsel lead wire
- Cast Heavy Duty DC Aluminum black & Grind frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Rubber Motor Boot
- 8 Awg DC OFC Direct Leads
- 3" 8 Layer Flat Wound Hi-temp Aluminum Voice Coil
Click HERE to get a Subwoofer Box
T/S Parameters
| 10" | 12" | 15" | 18" | |
|---|---|---|---|---|
| Mounting Depth | N/A |
9.75" | 11" | 12" |
| Mounting Hole Diameter | N/A | 11.15" | 14.25" | 16.90" |
| Outside Driver Diameter | N/A | 12.5" | 15.7" | 18.5" |
| VC Diameter | N/A | 3.0" | 3.0" | 3.0" |
| Displacement | N/A | .19 ft | .23 ft | .26ft |
| Power Handling rms/peak | N/A | 2200/4400 | 2200/4400 | 2200/4400 |
| Ohm Options | N/A | d.7/d1/d2/d4 | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
| Sd | N/A | 494 cm | 791 cm | 1159 cm |
| Vas | N/A | 22.368 L | N/A L | 129.16 L |
| Cms | N/A | 0.076 Mm/n | N/A Mm/n | 61.35 um/n |
| Mms | N/A | 332.5 g | 367.4 g | 534.19 g |
| Fs | N/A | 31.63 Hz | 30.1 Hz | 27.8 Hz |
| Bl | N/A | 24.165 N/A | 23.73 N/A | 26.49 N/A |
| Re | N/A | 4.169 Ohm | 1.8 Ohm | 4.66 Ohm |
| Le | N/A | 5.539 mH | N/A mH | 4.42 mH |
| Qms | N/A | 6.204 |
6.31 |
8.27 |
| Qes | N/A | 0.4717 |
0.37 |
0.62 |
| Qts | N/A | 0.4384 |
0.35 |
0.577 |
| Xmax | N/A | 34mm | 34mm | 34mm |
| Ref SPL @1 watt | N/A | N/A | 90.3 db | 88.25 db |
| Suggest Sealed Box | N/A | 1.0 ft | 2.0 ft | 3.5 ft |
| Suggested Ported Box | N/A | 1.50 ft | 3.25 ft | 5.5 ft |
The XL Elite (IMO) is the ultimate Subwoofer! This thing plays High notes, Low notes and sounds fantastic doing so. DC has high motor force with light soft parts which results in a Subwoofer you just can't order from a catalog. You can Hear and Feel the difference.

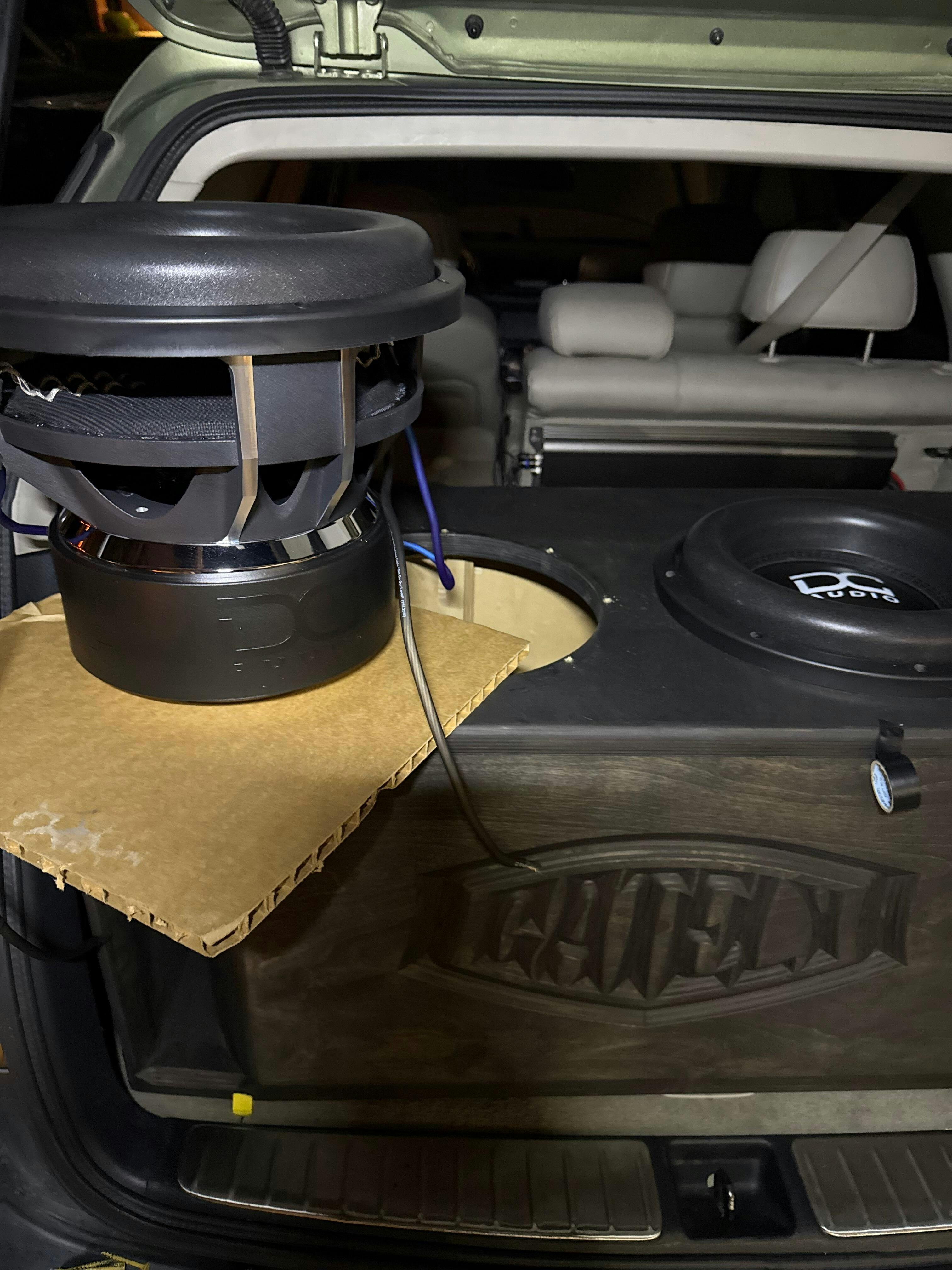

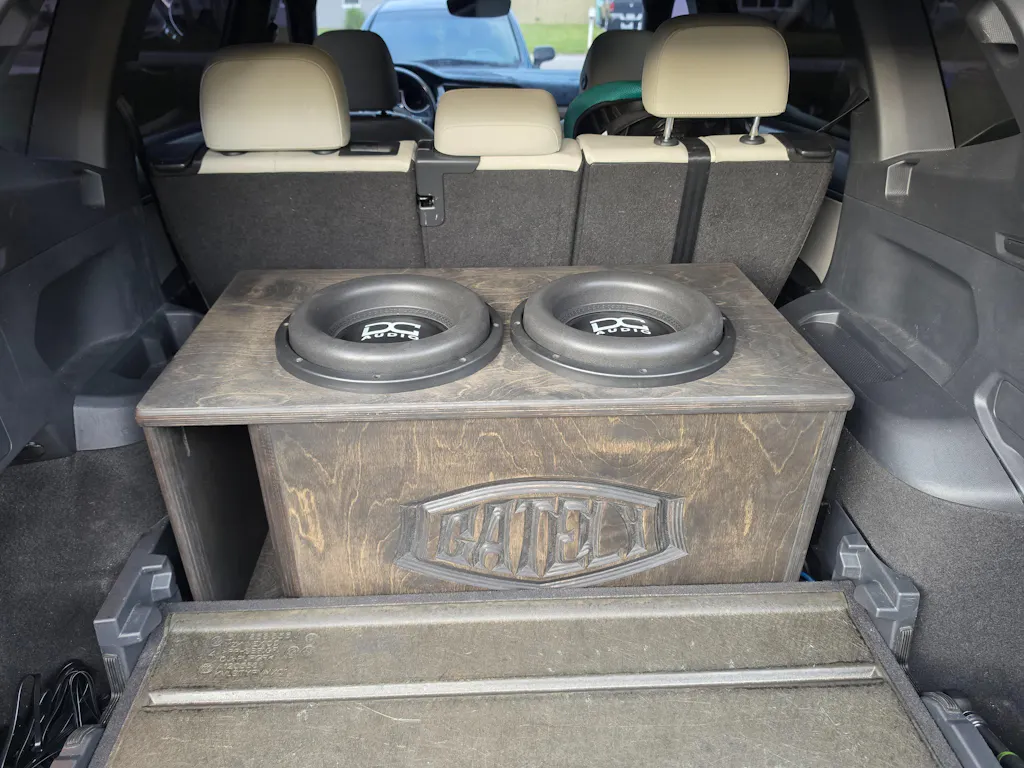

These subs perform so well. Packaging was perfect and product is amazing. Still breaking in some, but they pound in a Gately box. Hoping to throw some more power at them one day soon , but at 3k @ 1/2 ohm they perform well!

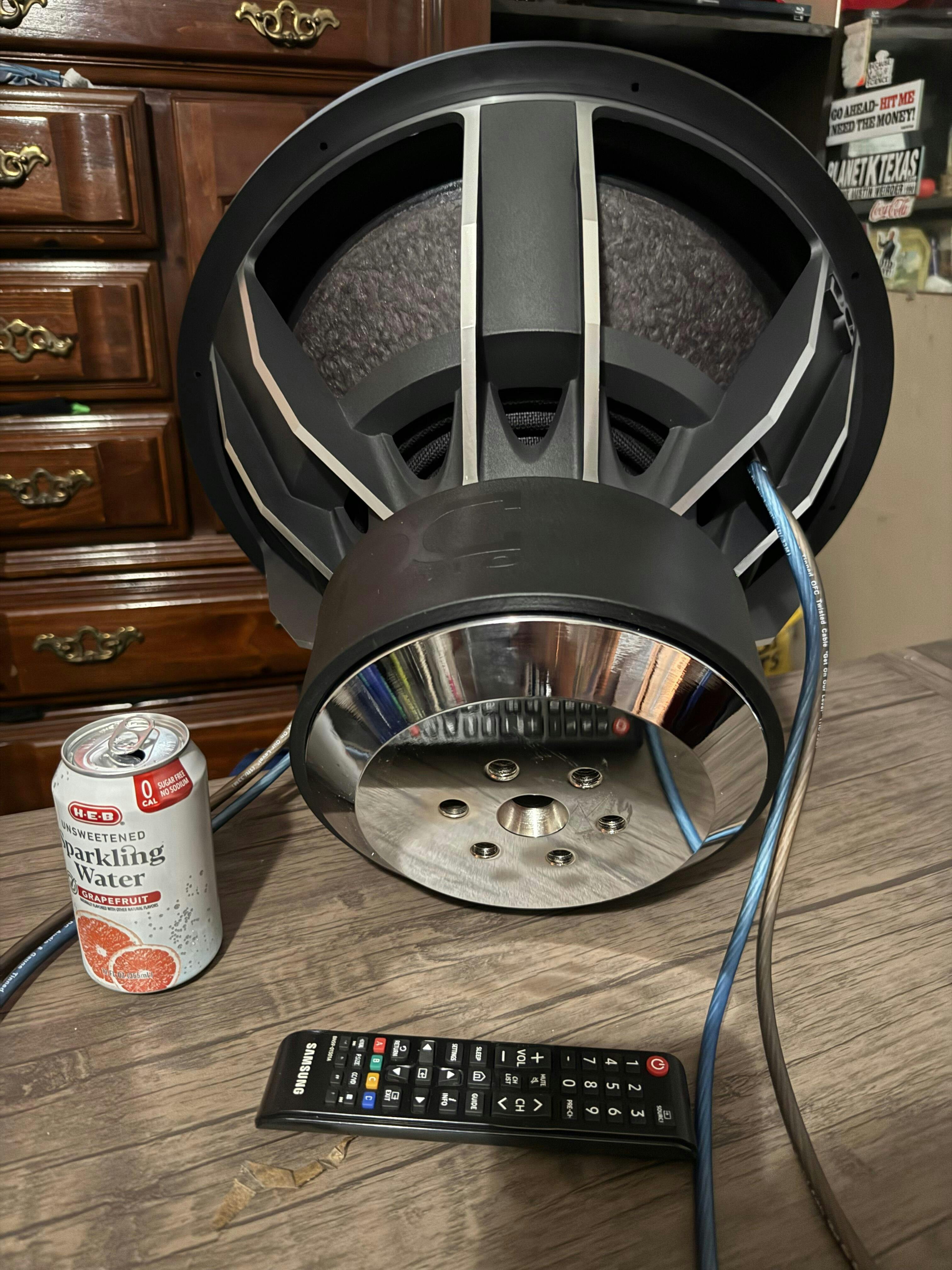

This subwoofer is a beast, build quality is on point. Massive magnet with a nice machined finish on the basket. I wish the direct leads were slightly longer but that wasn’t a deal breaker. DC AUDIO for the win.
Been a bass head for most of my life. Use a lot of top-of-the-line and mid-level equipment. Purchase LX elite 15 inch with a 5K amp. The bass is so pure and clear and deep some of the best I’ve ever heard. I will be a repeat customer and I would recommend this to anybody.
Upgraded from a level 4 which was a great sub but this XL Elite is no joke. Smashing the lows and perfect for a daily bass head.
